Safety / Alcohol and Drug Testing
Dräger Alcotest 5000

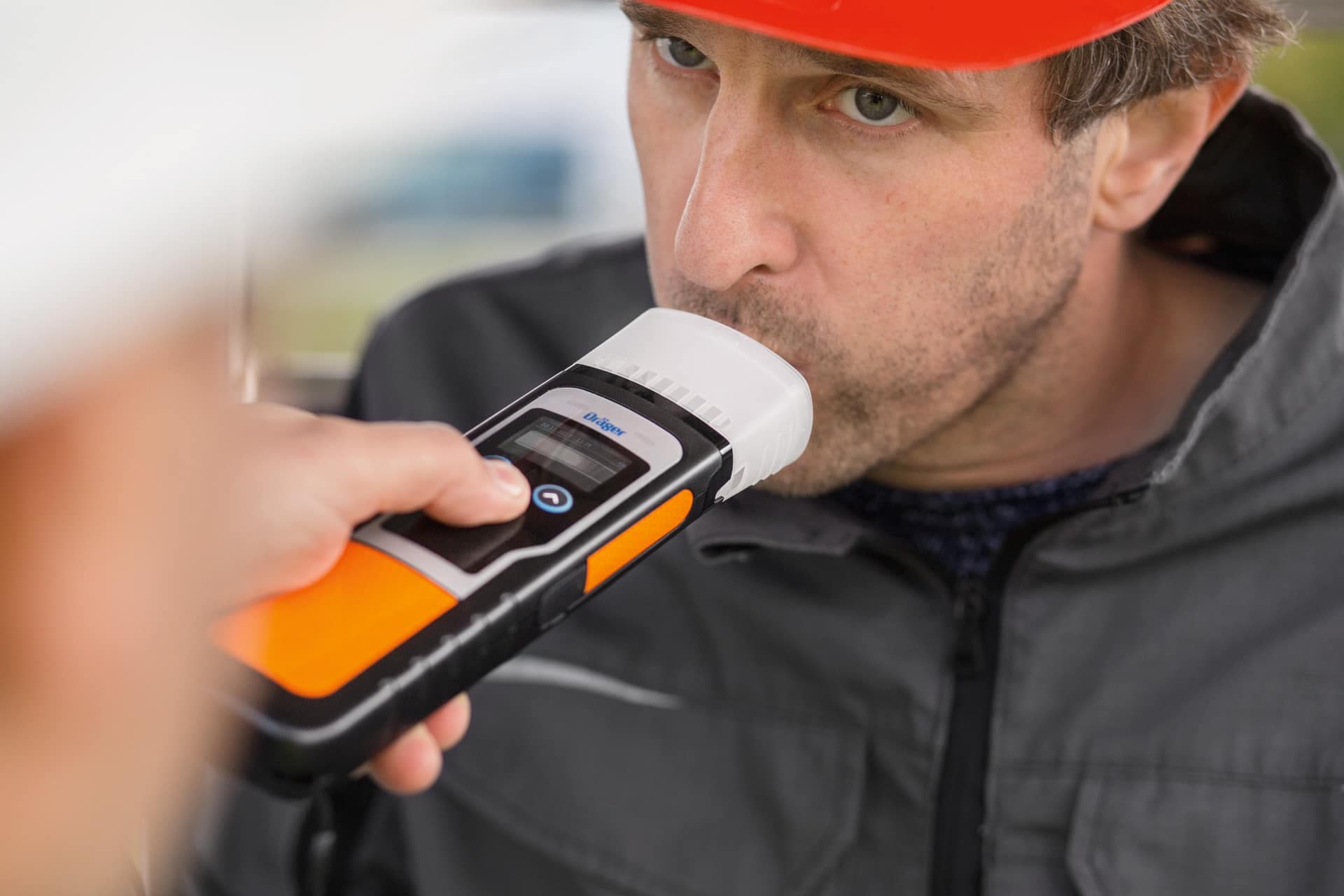

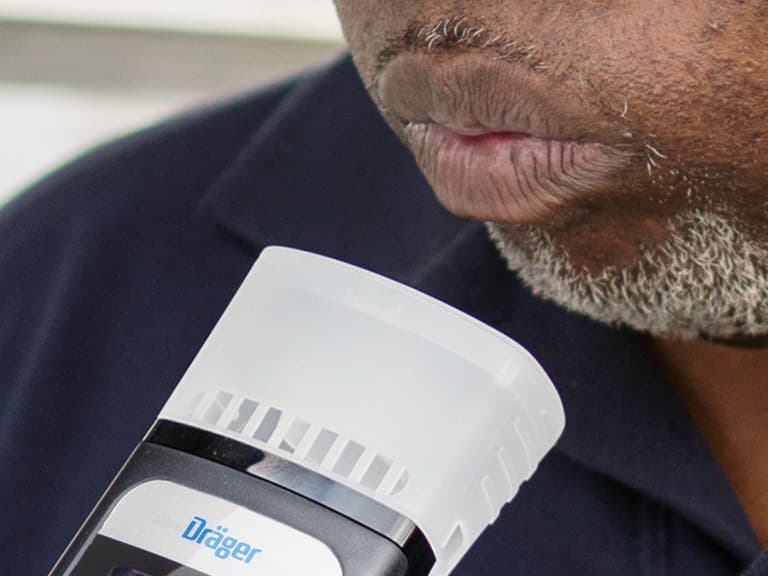

The Dräger Alcotest 5000 is a professional breath-alcohol tester which detects the presence of alcohol. The high-speed breathalyser lets you perform numerous tests in no time. All tests are conducted without coming into physical contact with the test subject. The special funnel attachment reduces the back-flow of exhaled air to a minimum, which prevents the risk of possible infections to the next test subjects, making it an extremely hygienic solution.
Summary
Product overview
Professional detection of alcohol: YES/NOHigh-speed, up to 12 tests per minuteSpecial funnel for contactless, hygienic use
Category
Alcohol and Drug Testing
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Alcotest 5000
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Highlights
Structured product sections from the official source page.
360° Product View
Interactive or visual section carried over from the official product page.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Application
- Professional
- Sensor technology
- Dräger Electrochemical Sensor / Fuel cell
- Data storage
- 500 Tests
Specifications 2
- Displayed Results
- Device just show "No Alcohol" or "Alcohol"
Specifications 3
- Measuring range
- up to 2.5 mg/L
- Operating temperature
- -15°C - 50°C
- Display
- Black / White
- Connection port
- Micro USB
- Type of battery
- 3xAA-LR6 / 3x NiMH
- Number of tests from full battery
- 5000
- Protection class
- IP54
- Calibration interval
- 24 months
- Start up time
- 3 seconds
- Analyse time after test sample
- 3 to 25 seconds
- Recovery time to be ready for next test
- 20 to 120 seconds
Specifications 4
- EU Police approval (EN15964)
- not approved, because type of device cannot approved according approval
- EU Private Use approval (EN16280)
- not approved, because type of device cannot approved according approval
- NHTSA Evidential
- not approved, because type of device cannot approved according approval
- Australia
- not approved, because type of device cannot approved according approval
- German Lloyd
- not approved, because type of device cannot approved according approval
- US Coast Guard
- not approved, because type of device cannot approved according approval
- UK Home Office
- not approved, because type of device cannot approved according approval
