Dräger Flame 1350 (UV/IR)
The Dräger Flame 1350 combines UV and IR sensors to detect hydrocarbon-based fires. These powerful sensors and complex algorithms provide increased safety and fewer false alarms.
Summary
Product overview
Uses UV and IR sensors for reliable detection of hydrocarbon-based firesHigh performance and low false alarm rate
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Flame 1350 (UV/IR)
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Measuring Principle
- Radiation
- Field of view
- Horizontal 90°, Vertical 90°
- Response time
- Typically 5 seconds
- Cable entry
- Dual M25 or ¾''NPT
Specifications 2
- Methane
- 30 m
- Ethanol
- 30 m
- n-Heptane
- 39 m
- Diesel Fuel / JP5 / Kerosene
- 36 m
- Ethylene glycol
- 15 m
- Gasoline
- 39 m
- Methanol
- 25 m
- IPA (Isopropyl Alcohol)
- 37 m
- Acetone
- 39 m
- Hexane
- 40 m
Specifications 3
- Power Supply
- 18 to 32 V DC (24 V DC nominal)
- Temperature (operation)
- -60°C - 85°C
- Humidity
- 0 to 100 % r.h., non-condensing
- Dimensions (H × W × D)
- 22x10 cm
- Weight
- 6 Kg
- Housing Material
- Aluminium or stainless steel, powder-coated
- IP class
- IP66 / NEMA 4X
Related products
Additional products from the same category.
Catalytic Bead DrägerSensor®
Detects flammable gases and vapoursLong-term stability due to double-detector compensation method

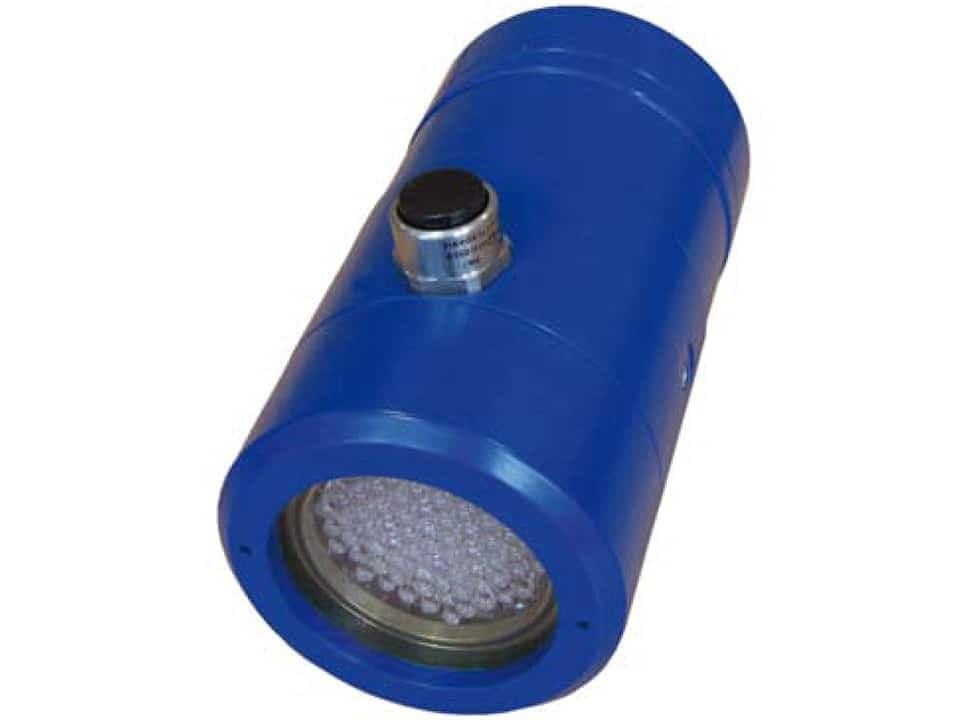

Dräger FS-5000
Simulates presence of fire for testing Flame 5000Designed for extreme offshore environmental conditions

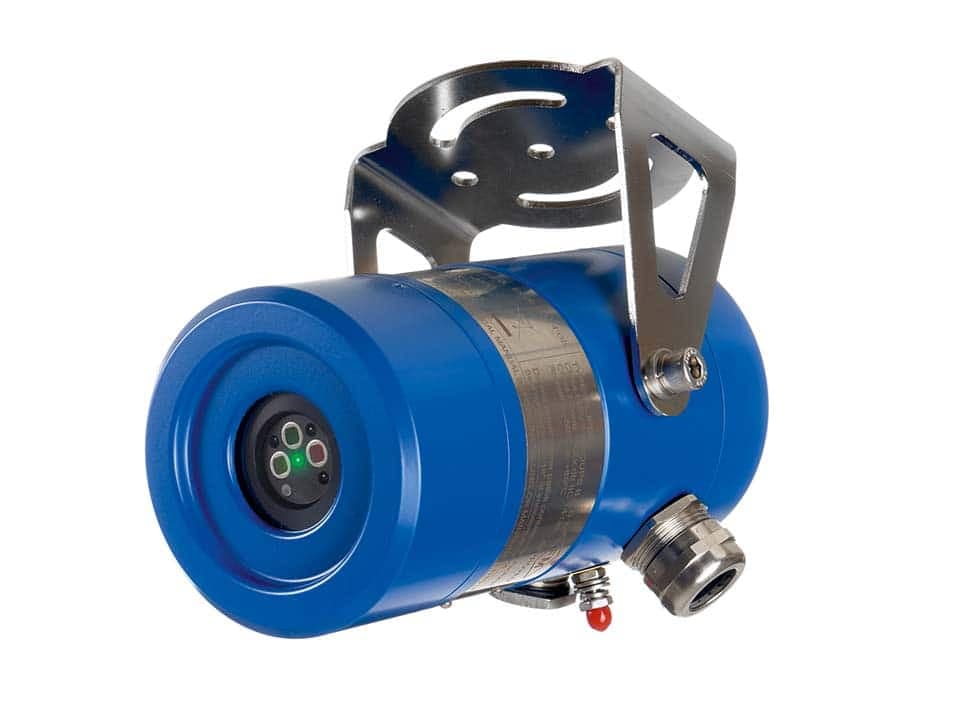

Dräger Flame 1500 (IR3)
Uses triple IR sensor for hydrocarbon fire detectionHigh reliability, low false alarm rate

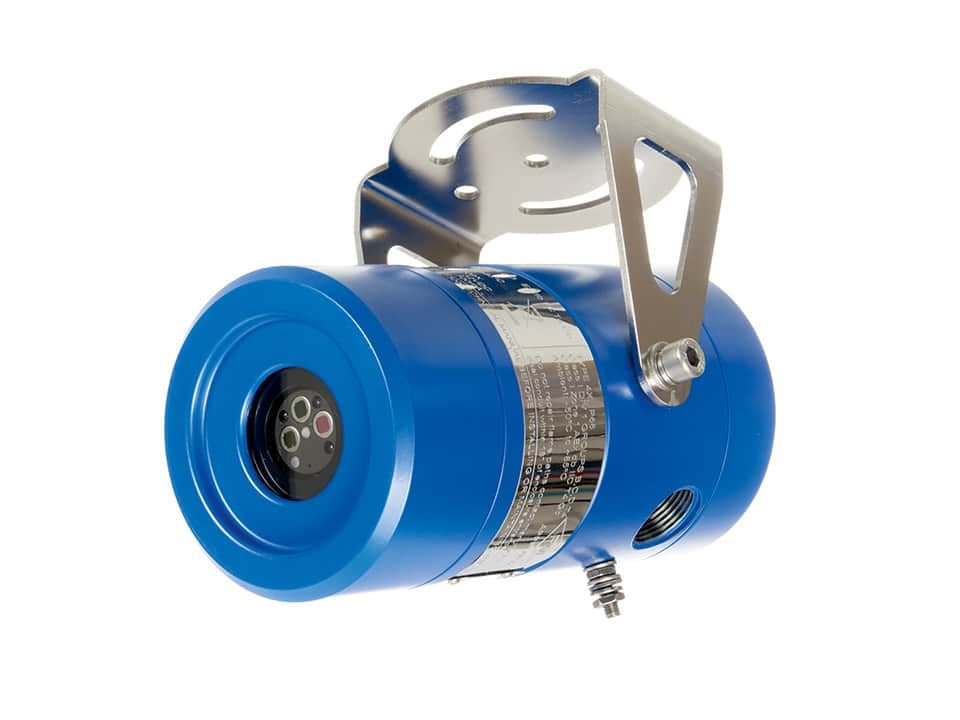

Dräger Flame 1750 H₂ (IR3)
