Safety / Portable Gas Detection

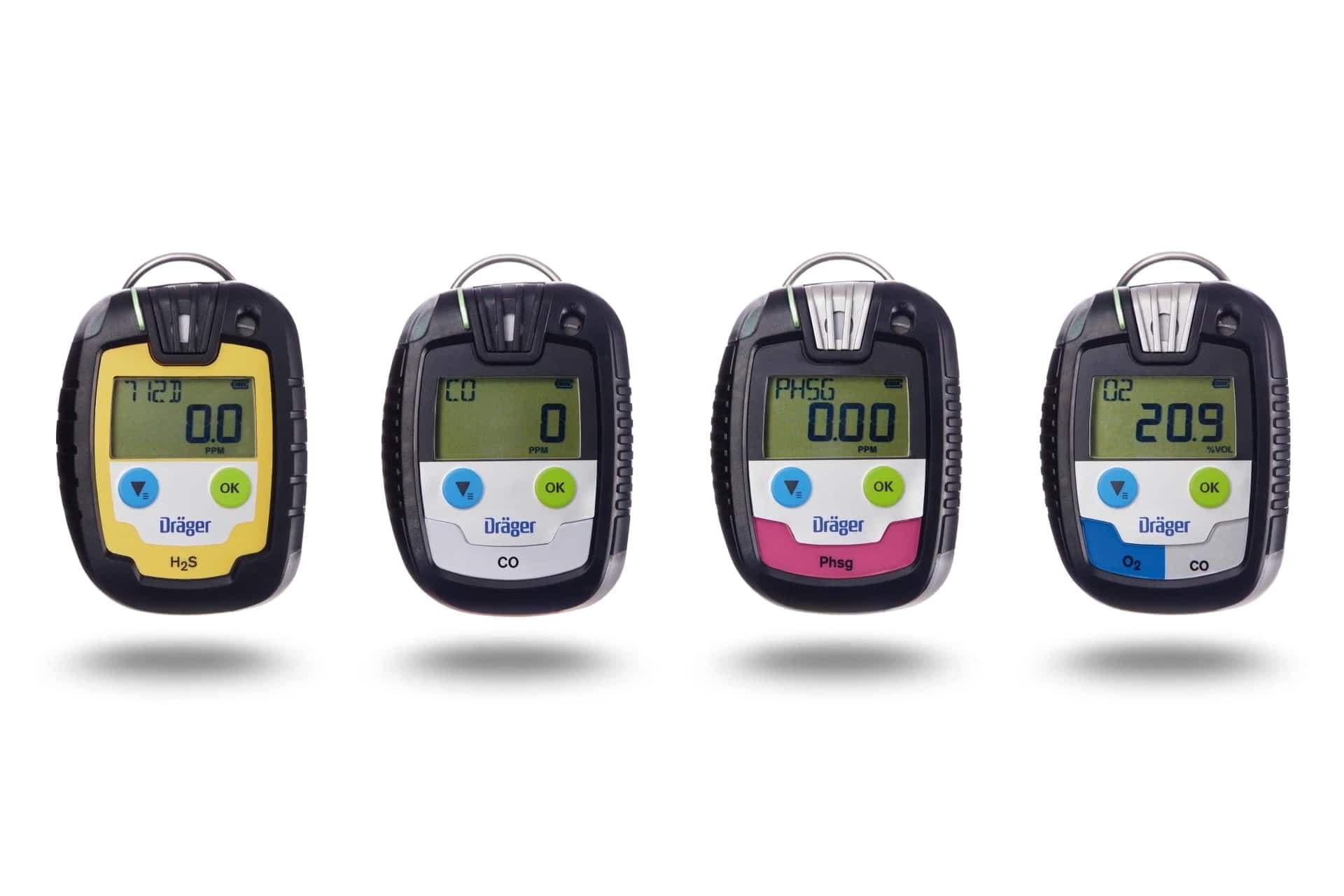

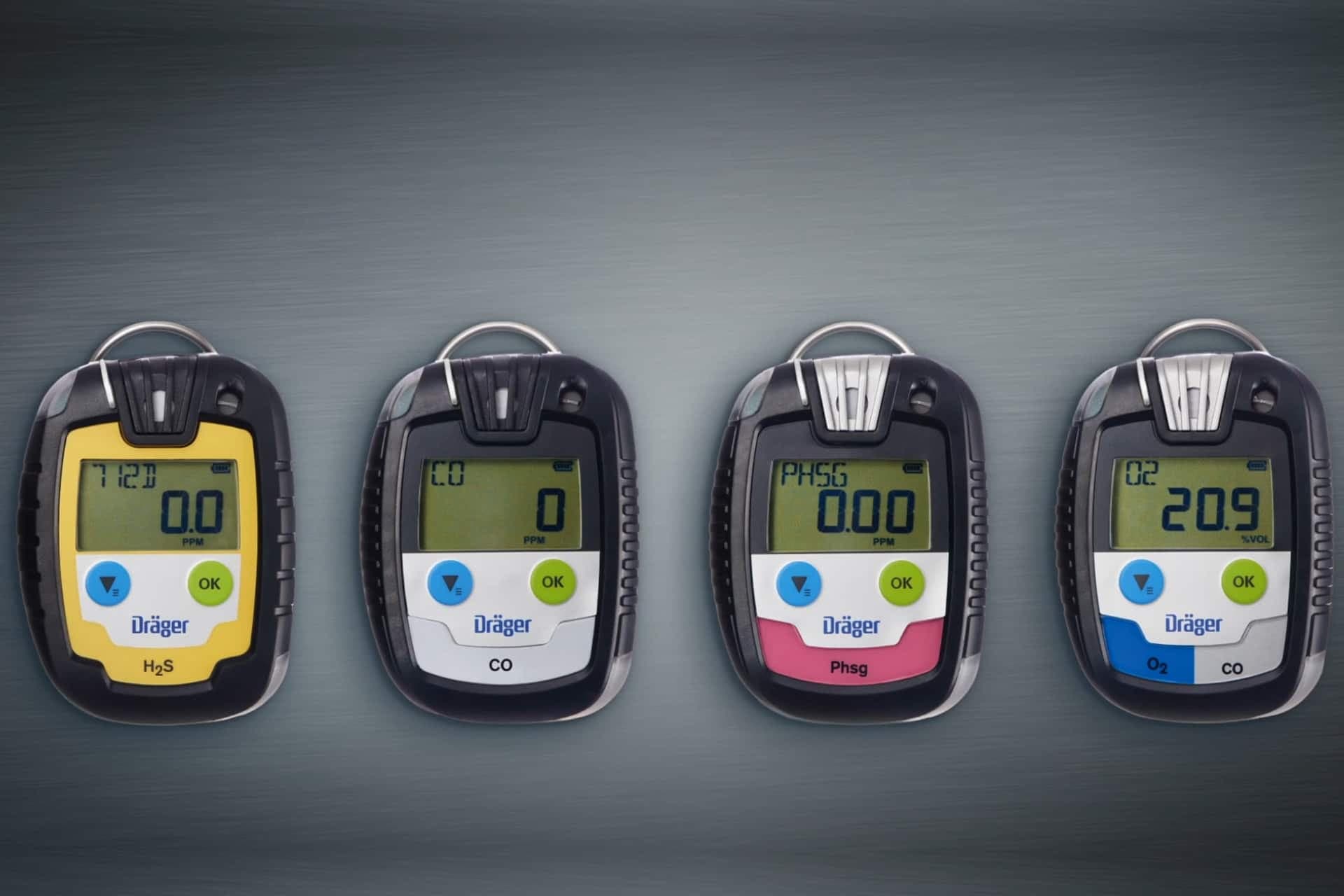

Dräger Pac® 8500

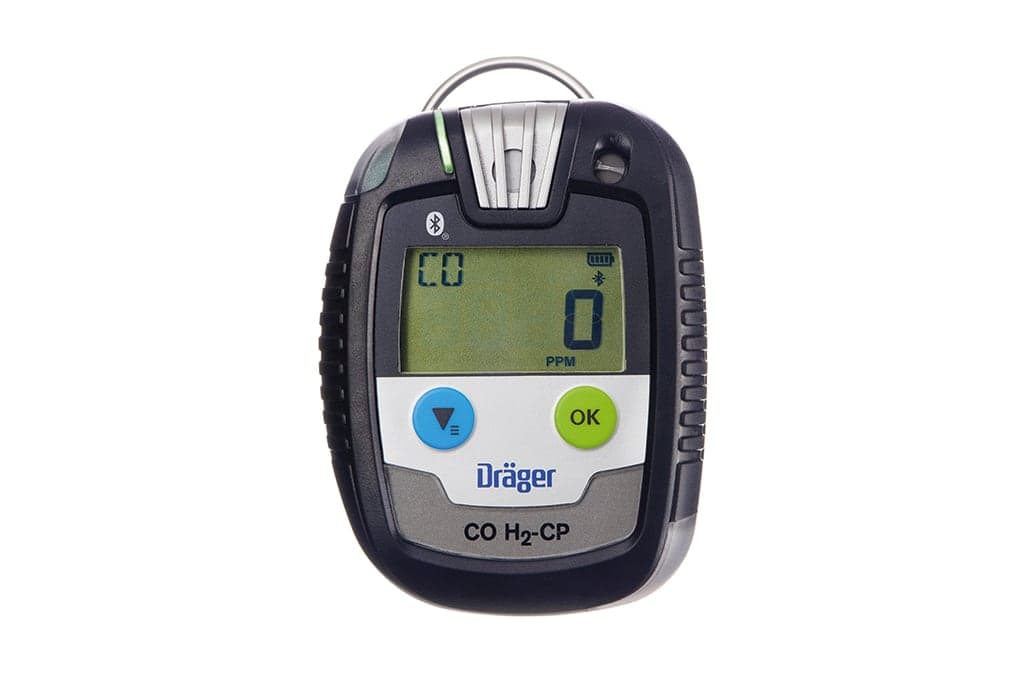

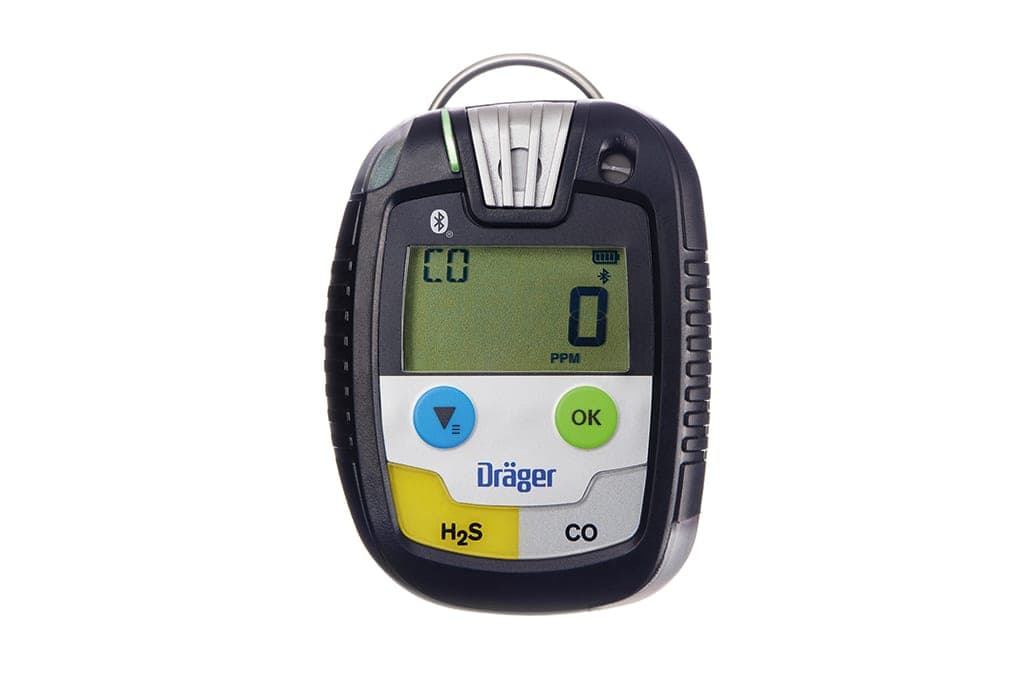

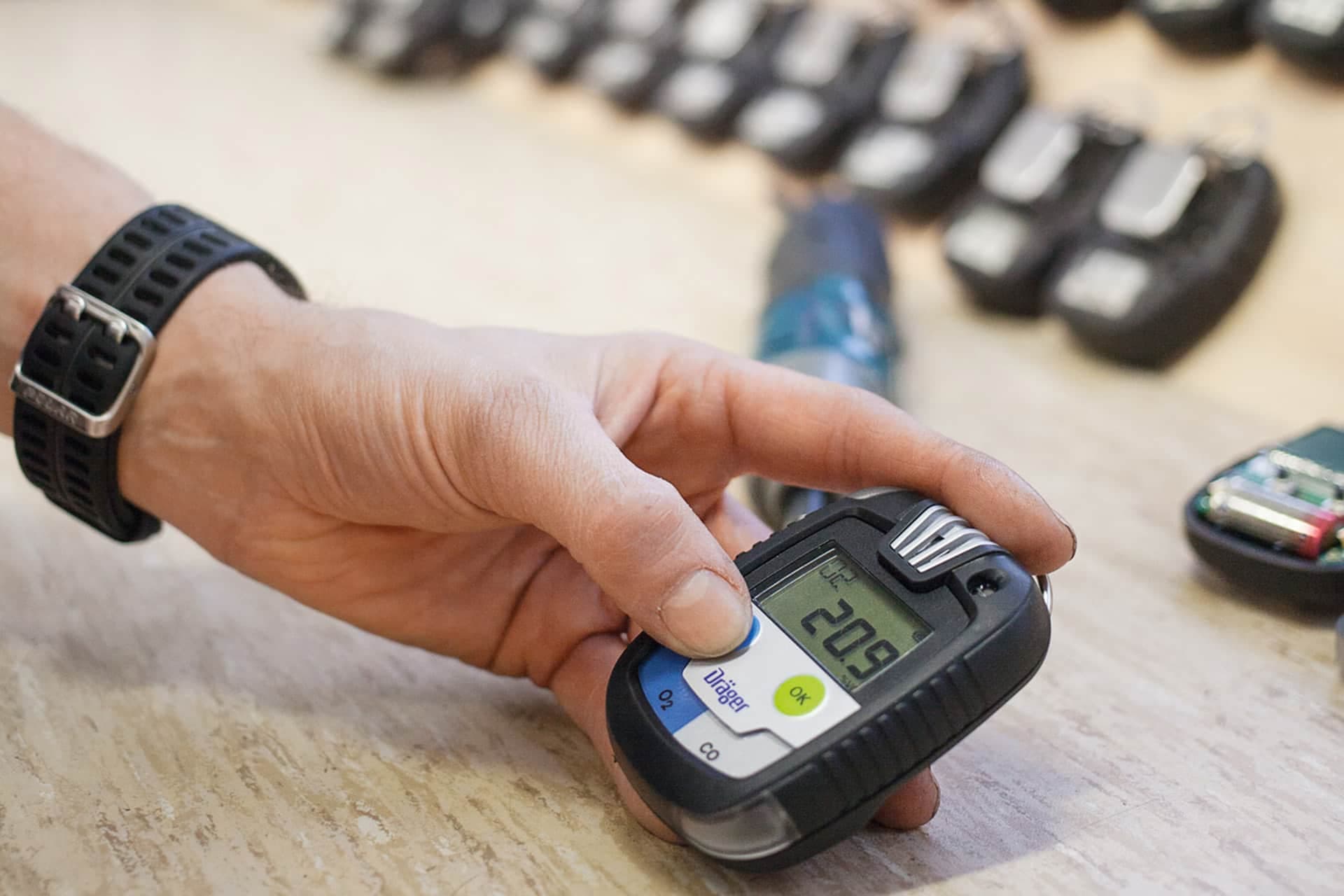

The Dräger Pac® 8500 single-gas detection device is a reliable and precise instrument even under the toughest of conditions. Measured data can easily be transmitted into the Dräger Gas Detection Connect system via Bluetooth®. The device can be equipped with a hydrogen-compensated CO sensor or a Dräger dual sensor. This gives you the option of measuring two gases at once: H2S with CO, H2S with O2 or O2 with CO.
Summary
Product overview

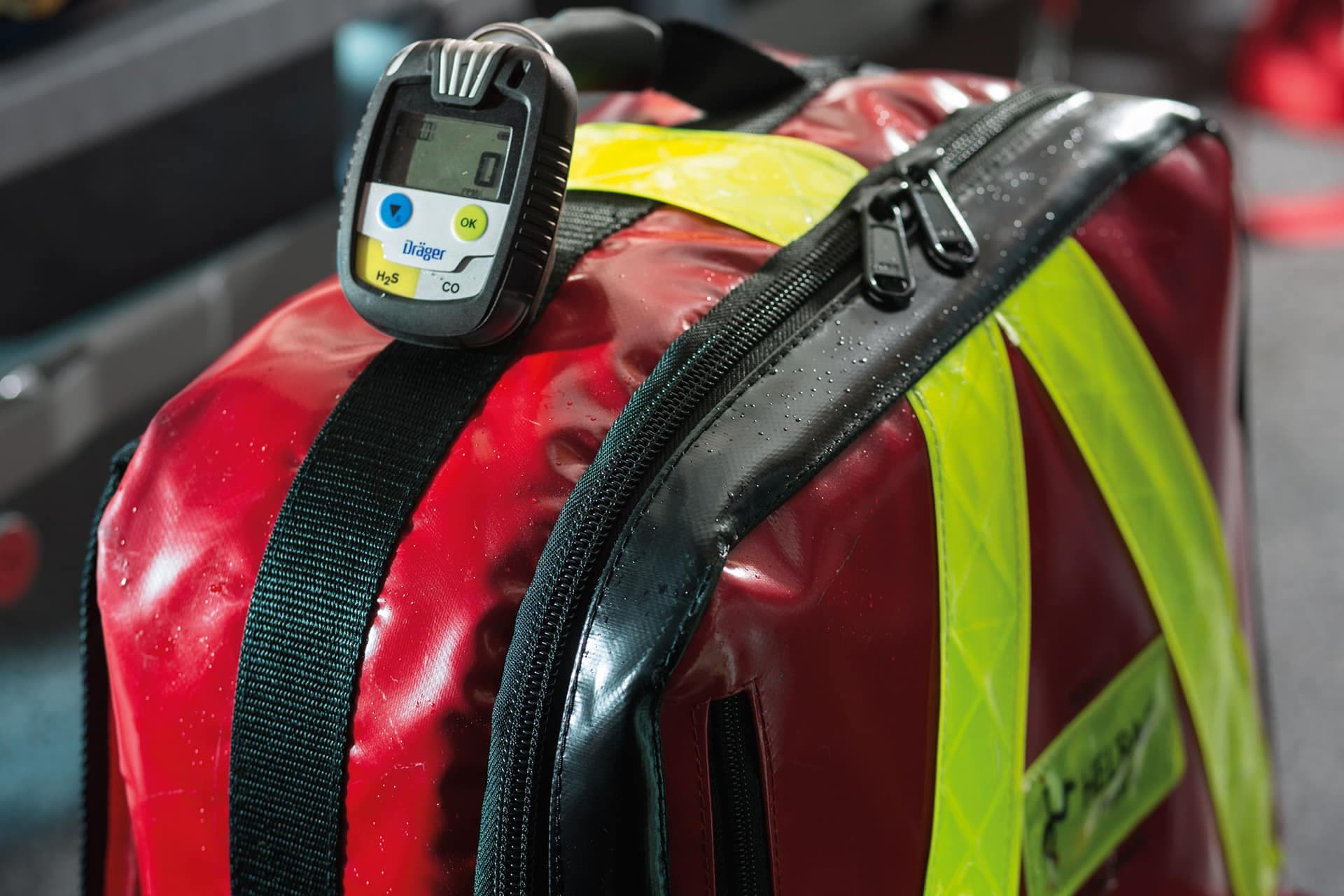

Reliable non- disposable single-gas detection device with option of measuring two gases at once: H2S with CO, H2S with O2, or O2 with COfor personal air monitoringRobust design, tolerating extreme condition
Category
Portable Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Pac® 8500
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Sensor type
- Single-Gas Detector
- Measurable gases
- CO H2-CP, CO/H2S, CO/O2
- Number of gases
- 1-2
- Lifetime
- unlimited
Specifications 3
- Temperature range (device)
- -40°C - 55°C
- Battery service life
- 2 years (24/7)
- Air humidity (relative humidity) in %
- 10% to 90%
- Air pressure (hPa)
- 700 - 1300
- Degree of protection (IP class)
- IP 68
- Weight
- 106 g
Specifications 4
- Changable filter
- easy to change from outside / mechanical connection
Specifications 5
- ATEX
- I M1 Ex ia I Ma II 1G Ex ia IIC T4 Ga (Zone 0)
- IECEx
- Ex ia I Ma Ex ia IIC T4 Ga
- c CSA us
- Class I, Zone 0, AEx ia IIC T4 Ga, Class II, Division 1, Group E, F, G
Specifications 6
- Name
- More information
- Carbon monoxide
- More information
- Hydrogen sulphide
- More information
- Oxygen
- More information
Specifications 7
- Product
- Order number
- Dräger Pac® 8500
- R59500
- DrägerSensor XXS CO / H2 compensated
- 6811950
- DrägerSensor XXS CO LC / H2S LC
- 6813280
- DrägerSensor XXS O2 / CO LC
- 6813275
- DrägerSensor XXS O2 / H2S LC
- 6814137
