Safety / Thermal Imaging Cameras

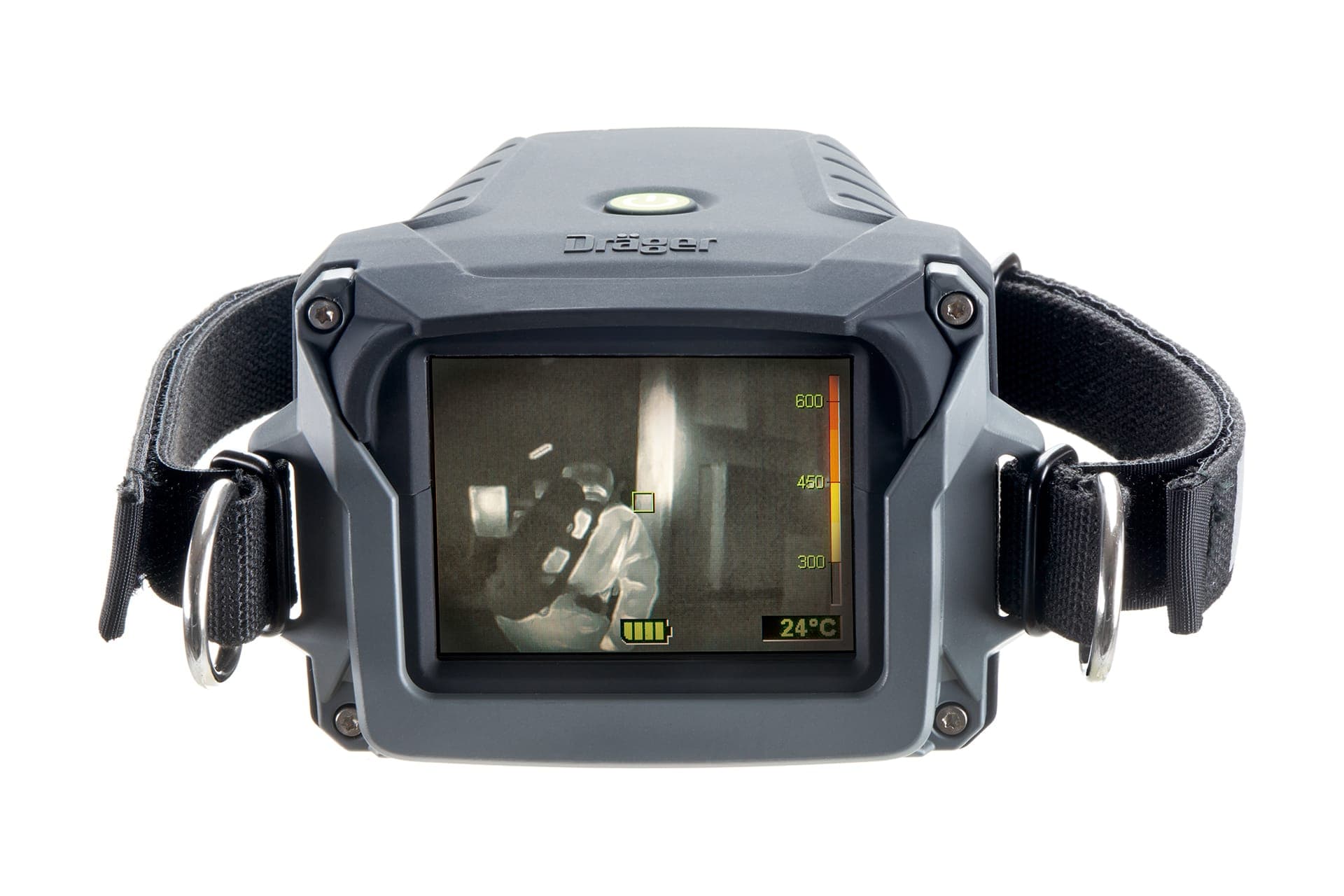

Dräger UCF FireVista

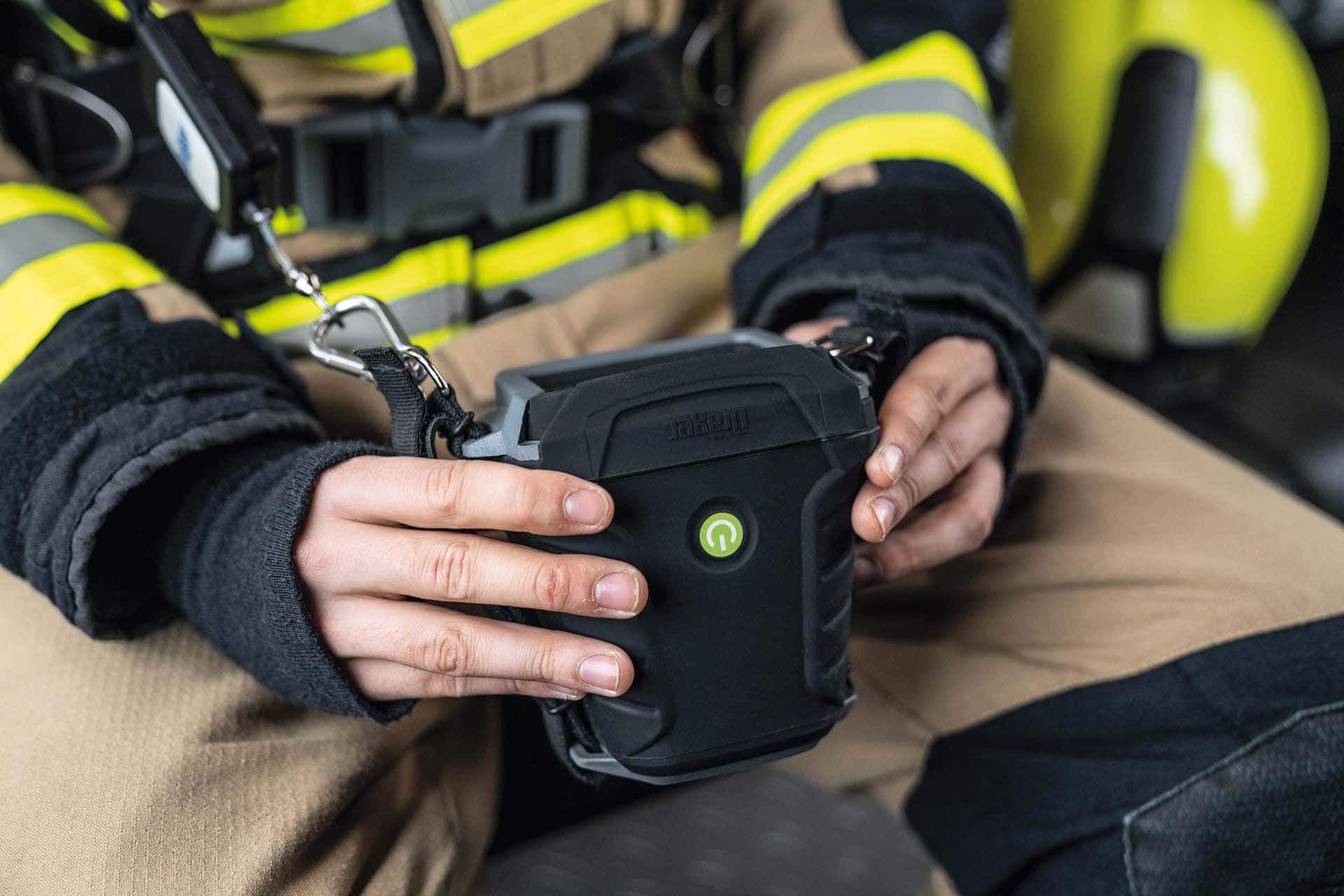

Small, light, robust and can be operated with just one button: The compact thermal imaging camera Dräger UCF FireVista provides excellent picture quality even under the most difficult operating conditions. The camera is ready for immediate use and provides the best possible support on firefighting deployments. Outstanding quality – especially in the price.
Summary
Product overview
Compact thermal imaging camera provides excellent picture quality even under the most difficult operationg conditionsLight and manageable, with one-button operation
Category
Thermal Imaging Cameras
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger UCF FireVista
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Resolution
- 320 x 240 pixels
- Field of view
- Horizontal: 50° / Vertical: 37° / Diagonal: 63°
- Dimensions of camera (WxHxD)
- 13.4x8.9x13.4 cm
- Weight
- 870 g
- Temperature sensitivity
- 50 mK
- Heat sensitivity
- -20°C - 650°C
- Battery life
- 5 hours
- Frame rate
- 30 hz
