Dräger X-am 5100
For manufacturing petrochemical products, aseptic packing, or handling of rocket fuel: the Dräger X-am 5100 portable single-gas detector ensures that you use the safest methods possible for handling HF, HCl, H2O2 or hydrazine – thanks to proven Dräger sensor technology and a device design which is perfectly customised to reactive gases.
Summary
Product overview
Portable single-gas detector for HF, HCl, H2O2, or hydrazinefor personal air monitoring
Category
Portable Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger X-am 5100
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Sensor type
- Single-Gas Detector
- Measurable gases
- H2O2, HF / HCL, Hydrazine
- Number of gases
- 1
- Lifetime
- unlimited
Specifications 3
- Temperature range (device)
- -20°C - 50°C
- Battery service life
- rechargable
- Air humidity (relative humidity) in %
- 10% to 95%
- Air pressure (hPa)
- 700 - 1300
- Degree of protection (IP class)
- IP 54
- Weight
- 220 g
Specifications 4
- Changable filter
- no filter in use
Specifications 5
- ATEX
- I M1 Ex ia I Ma II 1G Ex ia IIC T4/T3 Ga (Zone 0)
- IECEx
- Ex ia I Ma Ex ia IIC T4/T3 Ga
- c CSA us
- Class I, Div. 1, Groups A,B,C,D TC T4/T3 Class I, Zone 0, A/Ex ia IIC T4/T3 /Ga
Specifications 6
- Name
- More information
- Hydrazine (anhydrous)
- More information
- Hydrogen bromide (anhydrous)
- More information
- Hydrogen chloride (anhydrous)
- More information
- Hydrogen fluoride (anhydrous)
- More information
- Hydrogen peroxide
- More information
- Methyl hydrazine
- More information
- N,N-Dimethylhydrazine
- More information
- Nitric acid, fuming
- More information
- Phosphorus oxychloride
- More information
- Phosphorus trichloride
- More information
Specifications 7
- Product
- Order number
- Dräger X-am 5100
- 8322750
- DrägerSensor XS EC H2O2
- 6809170
- DrägerSensor XS EC HF/HCl
- 6809140
- DrägerSensor XS EC Hydrazine
- 6809190
Related products
Additional products from the same category.
Dräger X-am 8000
1- to 7 gas detection devicefor clearance measurementdetection of toxic and combustible gases as well as vapours and oxygen

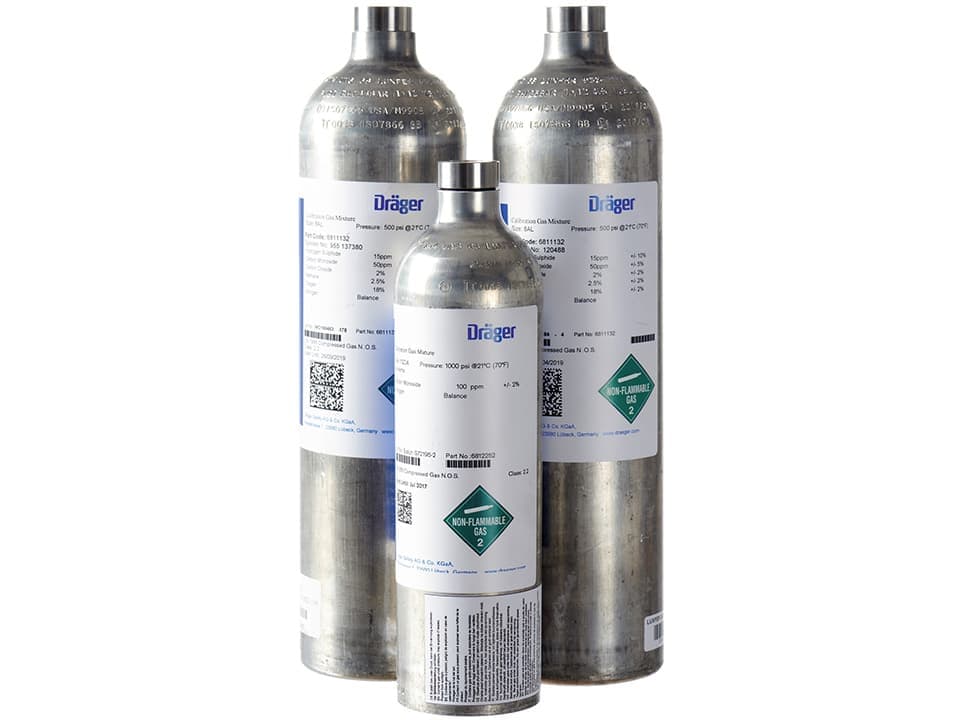

Calibration gas and accessories
