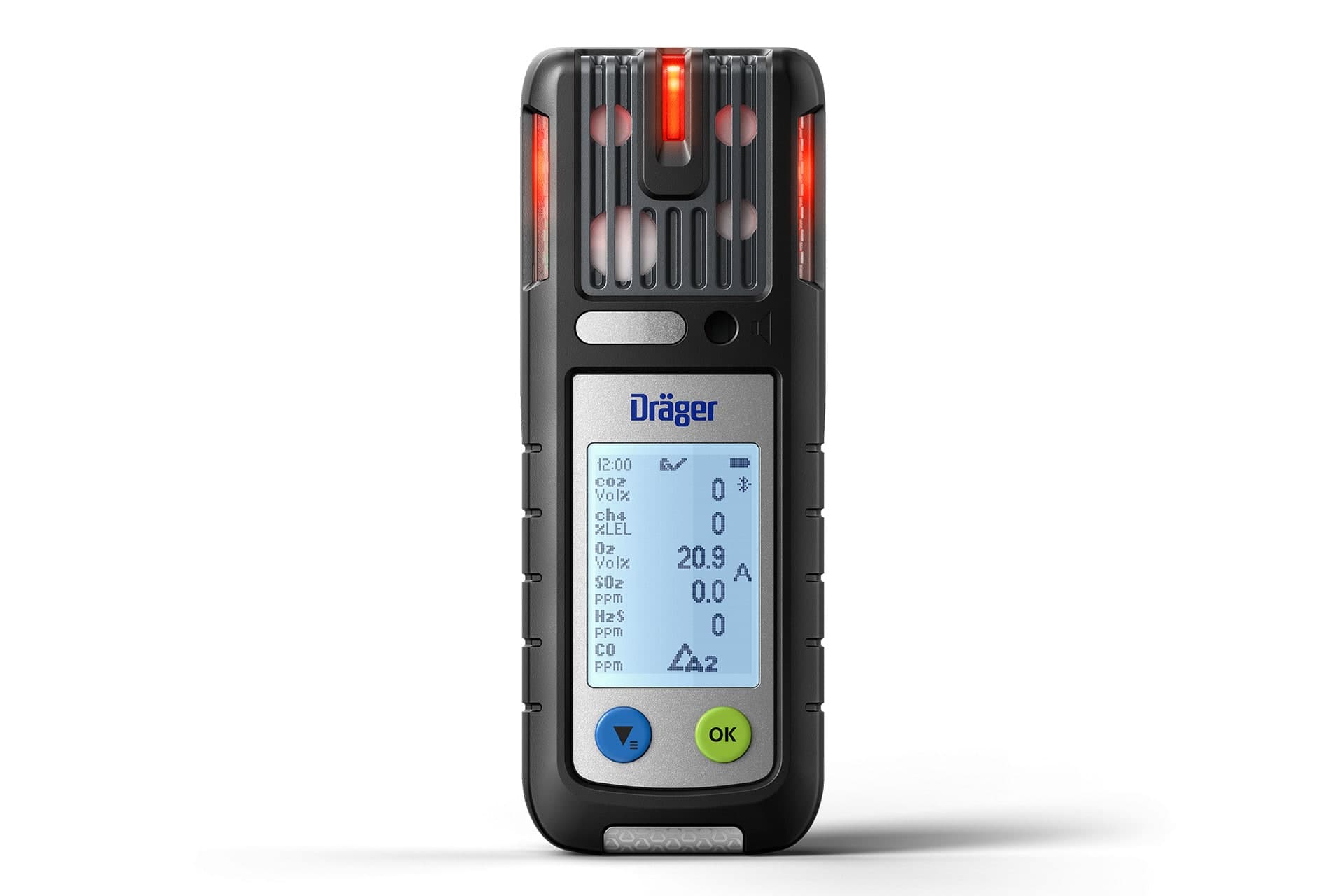

Dräger X-am® 5800
The X-am® 5800 multi-gas detector measures up to six gases and is equipped with a particularly shock-resistant CatEx sensor. With the Dräger Gas Detection Connect software, it offers live data transmission and powerful asset management. Designed for personal monitoring, the X-am® 5800 offers you the highest level of safety at a low cost of ownership.
Summary
Product overview
1 to 6 gas detection devicefor personal air monitoringdetection of flammable gases/vapours, toxic gases as well as oxygenSystem component of Dräger Gas Detection Connect
Category
Portable Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger X-am® 5800
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Highlights
Structured product sections from the official source page.
360° Product View
Interactive or visual section carried over from the official product page.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Measurable gases
- Ex, O2, CO, H2S, NO2, SO2 + (choice out of > 30 sensors)
- Sensorports
- 4
- Number of gases
- 1 - 6
- Sensor technology
- Cat + EC
Specifications 3
- Operation time
- >12h
- Dimensions (W × H × D)
- 4.8x13x4.4 cm
- Weight
- 220 g
- Battery type
- NiMH
- Degree of protection (IP class)
- IP 68
Specifications 5
- ATEX
- I M1 Ex da ia I Ma; II 1G Ex da ia IIC T4 Ga
- IECEx
- Ex da ia I Ma; Ex da ia IIC T4 Ga
- c CSA us
- Class I Div. 1 Group A, B, C, D, E, F, G T4/T3 | A/Ex da ia IIC T4/T3 /Ga
- GOST (EAC)
- PO Ex da ia I Ma X 0Ex da ia IIC T4/T3 Ga X
Specifications 6
- Name
- More information
- Acetaldehyde
- More information
- Acetic Acid
- More information
- Acetic acid butyl ester
- More information
- Acetic acid ethenyl ester
- More information
- Acetic acid propyl ester
- More information
- Acetone
- More information
- Acetophenone
- More information
- Acetylene
- More information
- alpha-Pinene
- More information
- Ammonia (anhydrous)
- More information
- Ammonia solution 25%
- More information
- Arsine
- More information
- Benzene
- More information
- Bromine (gaseous)
- More information
- Butanal
- More information
- Carbon dioxide
- More information
- Carbon disulfide
- More information
- Carbon monoxide
- More information
- Chlorine
- More information
- Chlorine dioxide
- More information
- Chlorobenzene
- More information
- Cumene
- More information
- Cyclohexane
- More information
- Cyclohexanone
- More information
- Cyclopentane
- More information
- Di-i-propylether
- More information
- Diborane
- More information
- Diesel fuel
- More information
- Diethylamine
- More information
- Dimethyl disulfide
- More information
- Dimethyl sulphide
- More information
- Dimethylamine (anhydrous)
- More information
- Epichlorohydrin
- More information
- Ethane
- More information
- Ethanol
- More information
- Ethyl acetate
- More information
- Ethyl ether
- More information
- Ethyl mercaptan
- More information
- Ethylamine
- More information
- Ethylbenzene
- More information
- Ethylene
- More information
- Ethylene oxide
- More information
- Fluorine
- More information
- Formaldehyde
- More information
- Furan
- More information
- Heptane
- More information
- Hexane
- More information
- Hydrogen
- More information
- Hydrogen cyanide (anhydrous)
- More information
- Hydrogen selenide (as Se) (anhydrous)
- More information
- Hydrogen sulphide
- More information
- i-butanol
- More information
- i-butene
- More information
- i-butyl acetate
- More information
- Kerosene
- More information
- Liquified petroleum gas (L.P.G.)
- More information
- Methane
- More information
- Methanol
- More information
- Methyl bromide
- More information
- Methyl mercaptan
- More information
- Methyl methacrylate
- More information
- Methylamine (anhydrous)
- More information
- n-Butane
- More information
- n-Butanol
- More information
- n-Heptene
- More information
- n-Pentane
- More information
- n-Pentanol
- More information
- n-Propanol
- More information
- N,N,-Dimethylformamide
- More information
- Nitric oxide
- More information
- Nitrogen dioxide
- More information
- Nonane
- More information
- Octane
- More information
- Oxygen
- More information
- Ozone
- More information
- Petrol (unleaded)
- More information
- Phosgene
- More information
- Phosphine
- More information
- Propane
- More information
- Propylene
- More information
- Propylene oxide
- More information
- Silane
- More information
- Styrene
- More information
- Sulphur dioxide
- More information
- Tetrachloroethene
- More information
- Tetrahydrofuran
- More information
- Tetrahydrothiophene
- More information
- Toluene
- More information
- Trichloroethene
- More information
- Triethylamine
- More information
- Trimethylamine (anhydrous)
- More information
- Vinyl chloride
- More information
- Vinylidene chloride
- More information
- Xylene, all isomers
- More information
- 1-Bromopropane
- More information
- 1-Butene
- More information
- 1-Hexene
- More information
- 1-Methoxy-2-propanol
- More information
- 1,2-Dichlorobenzene
- More information
- 1,2-Dimethylbenzene
- More information
- 1,2,4-Trimethylbenzene
- More information
- 1,3-Butadiene
- More information
- 1,3-Dimethylbenzene
- More information
- 1,3,5-Trimethylbenzene
- More information
- 1,4-Dimethylbenzene
- More information
- 1,4-Dioxane
- More information
- 2-Butanol
- More information
- 2-Butanone
- More information
- 2-ethoxy-2-methylpropane
- More information
- 2-Methoxy-2-methyl-propane
- More information
- 2-Methoxyethanol
- More information
- 2-Methyl-2-propanethiol
- More information
- 2-Methylbutane
- More information
- 2-Propanol
- More information
- 2-Propen-1-ol
- More information
- 2-Propenal
- More information
- 2-Propenenitrile
- More information
- 3-Chloro-1-propene
- More information
- 4-Methyl-2-pentanol
- More information
Specifications 7
- Product
- Order number
- Dräger X-am 5800
- 3703850
- DrägerSensor CatEx SR
- 6851900
- DrägerSensor PID HC neo
- 6800417
- DrägerSensor XD-IR CO2
- 6800203
- DrägerSensor XXS Amine
- 6812545
- DrägerSensor XXS CI2
- 6810890
- DrägerSensor XXS CO / H2 compensated
- 6811950
- DrägerSensor XXS CO HC
- 6812010
- DrägerSensor XXS CO LC
- 6813210
- DrägerSensor XXS CO LC / H2S LC
- 6813280
- DrägerSensor XXS CO2
- 6810889
- DrägerSensor XXS COCI2
- 6812005
- DrägerSensor XXS H2
- 6812370
- DrägerSensor XXS H2 HC
- 6812025
- DrägerSensor XXS H2S HC
- 6812015
- DrägerSensor XXS H2S LC
- 6811525
- DrägerSensor XXS HCN
- 6810887
- DrägerSensor XXS HCN PC
- 6813165
- DrägerSensor XXS NH3
- 6810888
- DrägerSensor XXS NO
- 6811545
- DrägerSensor XXS NO2
- 6810884
- DrägerSensor XXS NO2 LC
- 6812600
- DrägerSensor XXS O2
- 6810881
- DrägerSensor XXS O2 / CO LC
- 6813275
- DrägerSensor XXS O2 / H2S LC
- 6814137
- DrägerSensor XXS O2 100
- 6812385
- DrägerSensor XXS O2 PR
- 6800530
- DrägerSensor XXS Odorant
- 6812535
- DrägerSensor XXS OV
- 6811530
- DrägerSensor XXS OV-A
- 6811535
- DrägerSensor XXS Ozone
- 6811540
- DrägerSensor XXS PH3
- 6810886
- DrägerSensor XXS PH3 HC
- 6812020
- DrägerSensor XXS SO2
- 6810885
