Safety / Respiratory Protection

Dräger X-plore 8000 Helmets

Helmet options in the Dräger X-plore 8000 series provide combined head and respiratory protection with high comfort. Different lengths and materials for the neck seal allow quick and easy adaptation to specific applications. These helmets are compatible with all powered air-purifying respirators in the Dräger X-plore 8000 series and the Dräger X-plore 9300 airline device.

Enquire nowOfficial sourceBrowse category
Dräger X-plore 8000 Helmet PC visor HL1
SafetyRespiratory Protection8 images

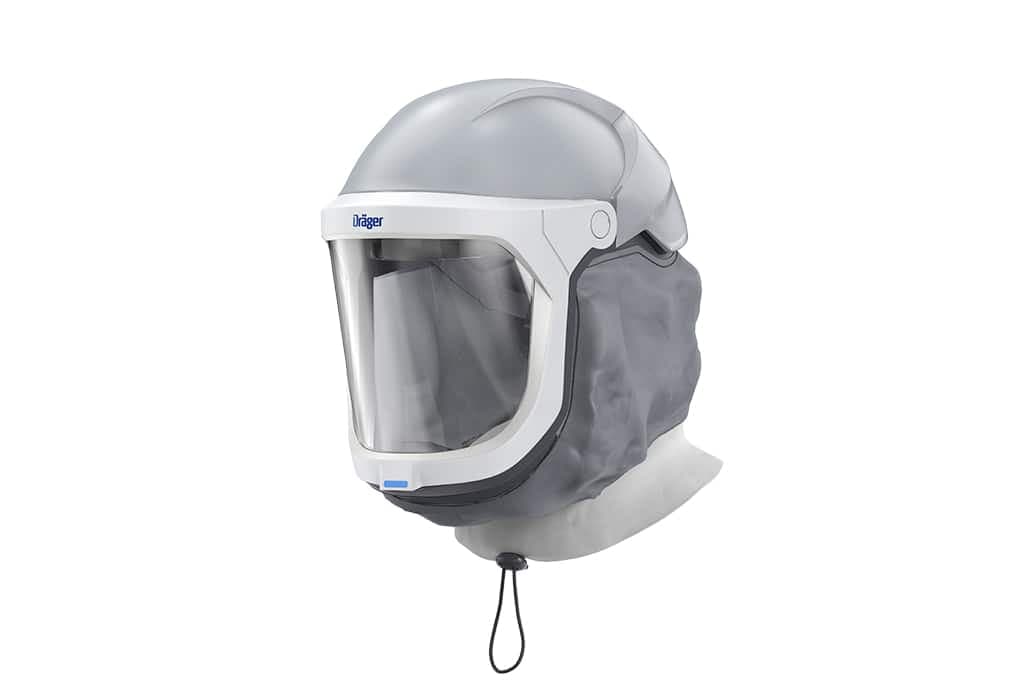

Dräger X-plore 8000 helmet PC visor L2Z
The X-plore 8000 series helmets offer safe and comfortable head protection combined with reliable respiratory protection, without any breathing resistance.
The X-plore 8000 Helmets PC Visor are compatible with the L1Z – L3T4 seals and feature a fixed frame with a flip-up visor.
All helmets can be used with the powered air purifying respirator types X-plore 8500 or X-plore 8700 for additional explosion protection.
For application scenarios that require working independent from the ambient air, the X-plore 8000 Helmet PC Visor with L1Z – L3T4 seals can be combined with the X-plore 9300 Airline system.
Face seals are available in different lengths and materials, depending on the helmet type, providing you with a tailor-made combination for any job and application.
Dräger X-plore 8000 Helmets Headpieces for PAPR and Airline

Summary

Product overview

Helmets for combination with Dräger X-plore 8000 systemProvides effective mechanical head protection and respiratory protectionDesigned for a wide field of applications in tough work environments

Category

Respiratory Protection

This page is structured from official Draeger content and reorganized for local B2B navigation.

Product enquiry

Enquire about Dräger X-plore 8000 Helmets

Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.

Selected productDräger X-plore 8000 Helmets

Your enquiry is stored in the site database and appears in the admin CRM. Email delivery and bot notifications can be enabled from environment settings, including a webhook bot hosted on Fly.io.

Specifications

Technical groups extracted from the official Draeger detail page.

Specifications 1

Sizes
One-size-fits-all
Seal lengths
neck length/short; chin length/medium; shoulder length/long
Seal material
textil
Head harness
Ratchet, adjustable

Specifications 2

Typical application fields
General industry; Steel and metal industry; Construction industry; Oil and gas industry; Waste disposal

Specifications 3

Compatible with X-plore 9300 (Airline)
(except for helmet PC visor HL1)

Specifications 4

Compatible with hearing protection
(except for helmet PC visor HL1)

Specifications 5

in combination with X-plore 8500
EN 12941 - class TH3
in combination with X-plore 8700 (EX)
EN 12941 - class TH3
in combination with X-plore 9300
Helmet PC visor L1Z - L3T4: EN 14594 – class 3B (L1Z; L3Z) EN 14594 – class 4A (L2Z, L2T2, L3T4) | Helmet PC visor HL1: not compatible

Specifications 6

Approval type
Helmet PC visor L1Z - L3T4: 1 BT 9 3 – EN 166 ANSI Z87+ | Helmet PC visor HL1: EN 166:2001 1 BT 3 9

Specifications 7

Approval type
Helmet PC visor L1Z - L3T4: EN 397 (-30 °C LD MM 440V a.c.) ANSI Z89.1 (type 1 class G) | Helmet PC visor HL1: EN 397:2012+A1:2012
