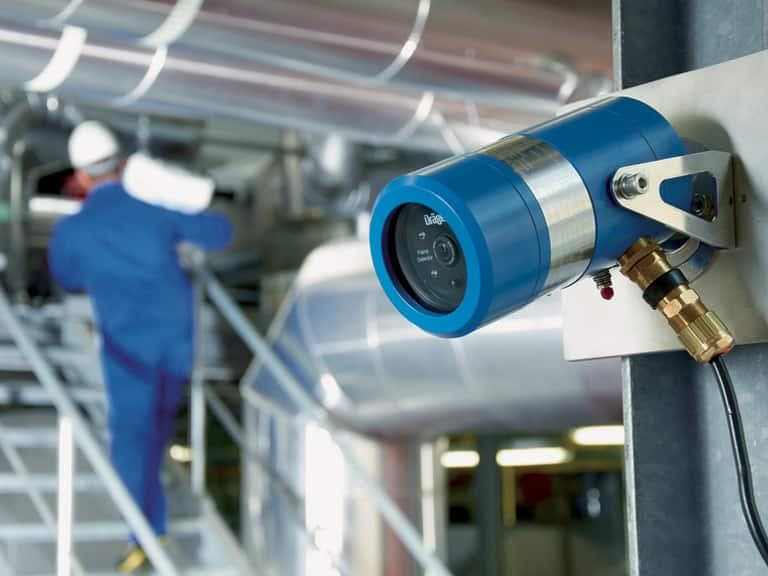

Dräger Flame 3000
Uses digital image processing for extended field of viewFewer false alarms compared to conventional detectors
Summary
Product overview
Uses digital image processing for extended field of viewFewer false alarms compared to conventional detectors
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Flame 3000
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Measuring Principle
- Visual
- Field of view
- Horizontal 120°; Vertical 80°
- Response time
- Typically 4 seconds
- Cable entry
- M20, M25, 1/2"NPT or 3/4"NPT
Specifications 2
- n-Butane
- 30 m
- Methane
- 30 m
- Ethanol
- 30 m
- n-Heptane
- 60 m
- JP4
- 90 m
- Diesel Fuel / JP5 / Kerosene
- 50 m
- Propane
- 42 m
- Crude oil
- 50 m
- Gasoline
- 57 m
- IPA (Isopropyl Alcohol)
- 45 m
- LPG
- 26 m
- Polypropylene Pellets
- 22 m
- Acetone
- 50 m
- Silane
- 17 m
- Hexane
- 77 m
Specifications 3
- Power Supply
- 18 to 32 V DC (24 V DC nominal)
- Temperature (operation)
- -60°C - 85°C
- Humidity
- 0 to 95 % r.h., non-condensing
- Pressure
- 915 - 1055
- Dimensions (H × W × D)
- 22x10 cm
- Weight
- 6 Kg
- Housing Material
- Aluminium or stainless steel, powder-coated
- IP class
- IP66 / NEMA 4X
Related products
Additional products from the same category.
Catalytic Bead DrägerSensor®
Detects flammable gases and vapoursLong-term stability due to double-detector compensation method

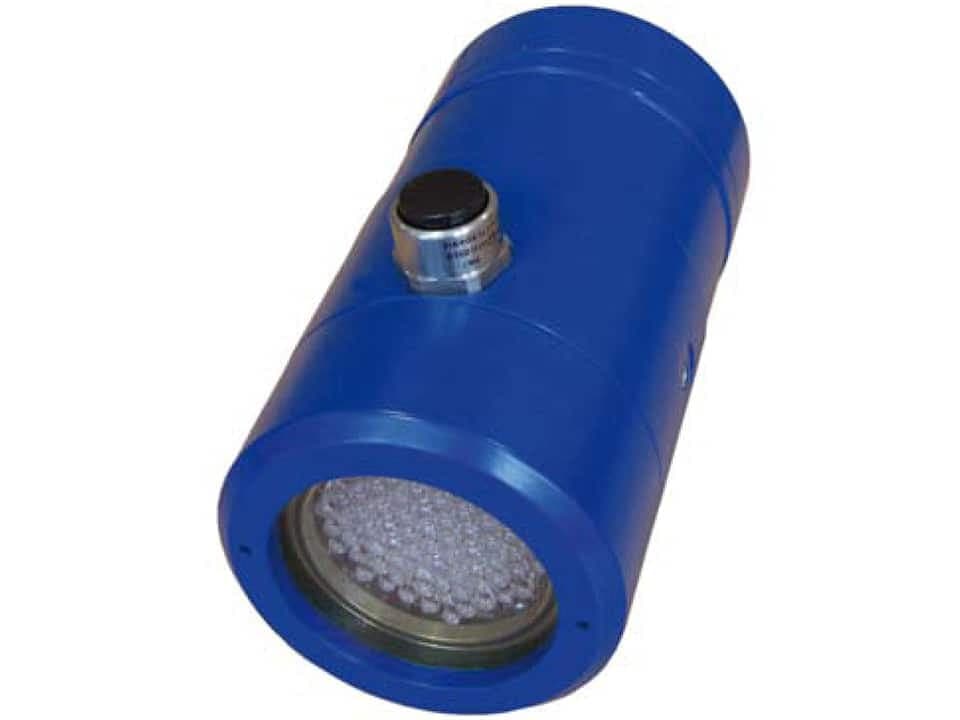

Dräger FS-5000
Simulates presence of fire for testing Flame 5000Designed for extreme offshore environmental conditions

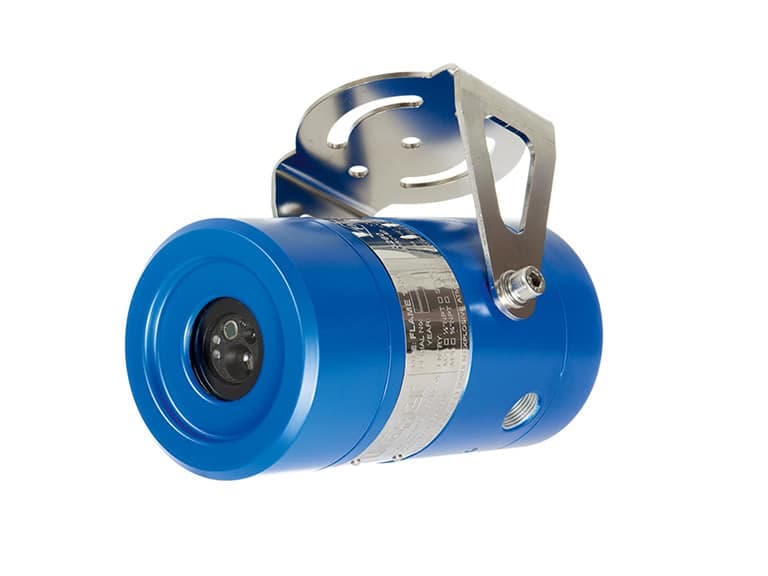

Dräger Flame 1350 (UV/IR)
Uses UV and IR sensors for reliable detection of hydrocarbon-based firesHigh performance and low false alarm rate

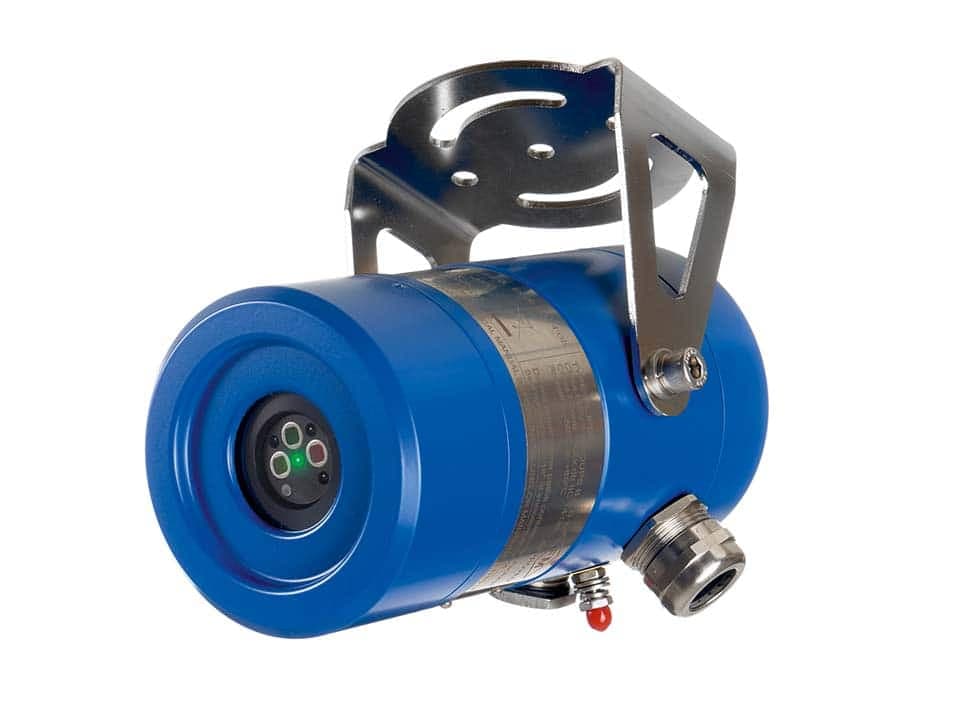

Dräger Flame 1500 (IR3)
