Dräger Flame 5000
Imaging based explosion proof flame detector with a colour CCTV cameraDigital image processing and advanced algorithms for flame interpretationExtended field of view and fewer false alarms
Summary
Product overview
Imaging based explosion proof flame detector with a colour CCTV cameraDigital image processing and advanced algorithms for flame interpretationExtended field of view and fewer false alarms
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Flame 5000
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Measuring Principle
- Visual
- Field of view
- Horizontal 90°; Vertical 65°
- Response time
- Typically 4 seconds
- Cable entry
- M20, M25, 1/2"NPT or 3/4"NPT
- SIL
- SIL 2 (IEC 61508-1-3)
Specifications 2
- n-Butane
- 26 m
- Methane
- 26 m
- Ethanol
- 26 m
- n-Heptane
- 44 m
- JP4
- 61 m
- Diesel Fuel / JP5 / Kerosene
- 32 m
- Propane
- 30 m
- Crude oil
- 40 m
- Gasoline
- 38 m
- IPA (Isopropyl Alcohol)
- 28 m
- LPG
- 30 m
- Polypropylene Pellets
- 15 m
- Acetone
- 30 m
- Silane
- 14 m
- Hexane
- 40 m
Specifications 3
- Power Supply
- 18 to 32 V DC (24 V DC nominal)
- Temperature (operation)
- -60°C - 85°C
- Humidity
- 0 to 95 % r.h., non-condensing
- Pressure
- 915 - 1055
- Dimensions (H × W × D)
- 22x10 cm
- Weight
- 6 Kg
- Housing Material
- Aluminium or stainless steel, powder-coated
- IP class
- IP66 / NEMA 4X
Related products
Additional products from the same category.
Catalytic Bead DrägerSensor®
Detects flammable gases and vapoursLong-term stability due to double-detector compensation method

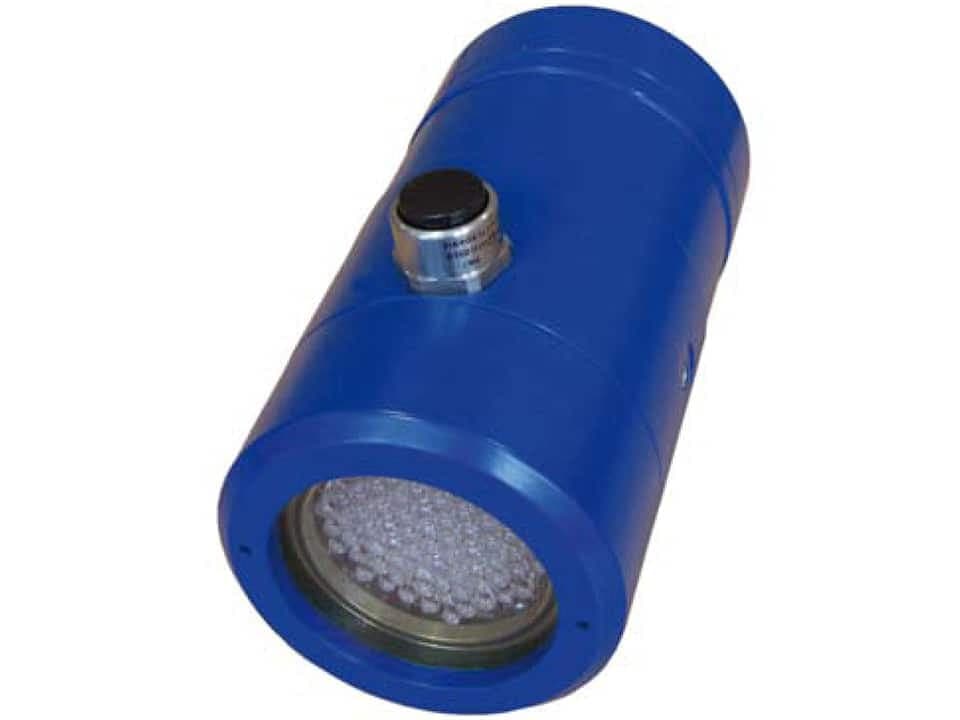

Dräger FS-5000
Simulates presence of fire for testing Flame 5000Designed for extreme offshore environmental conditions

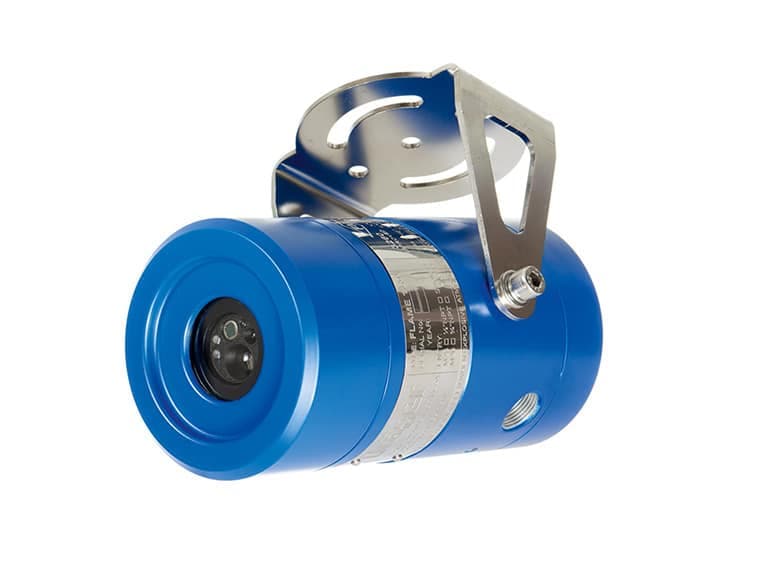

Dräger Flame 1350 (UV/IR)
