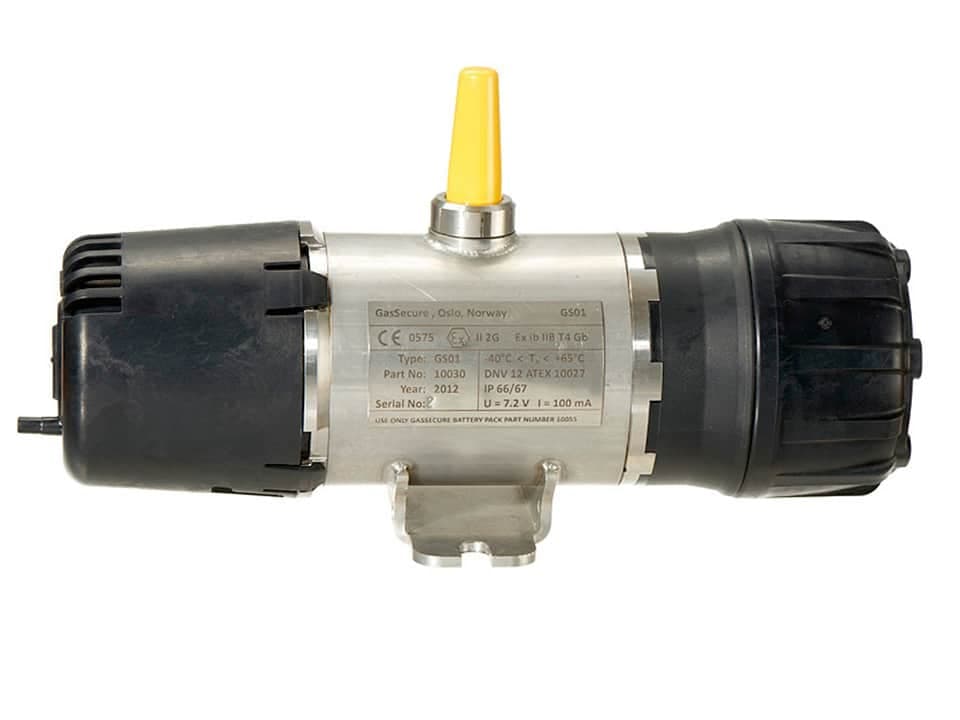

GasSecure GS01

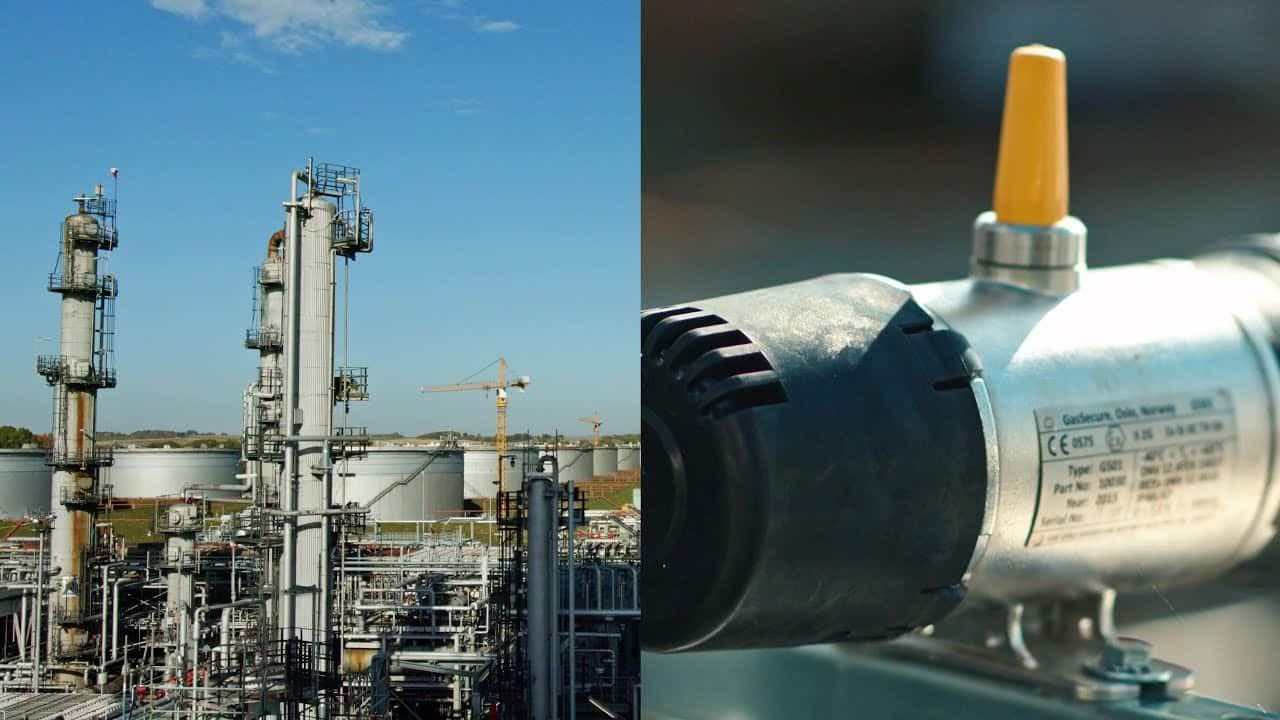

On offshore platforms or FPSOs, at tank farms and refineries – safety-related measuring points are everywhere in the oil and gas industry. Some of these measuring points are extremely difficult if not impossible to monitor using wired gas detection d … More information
Summary
Product overview

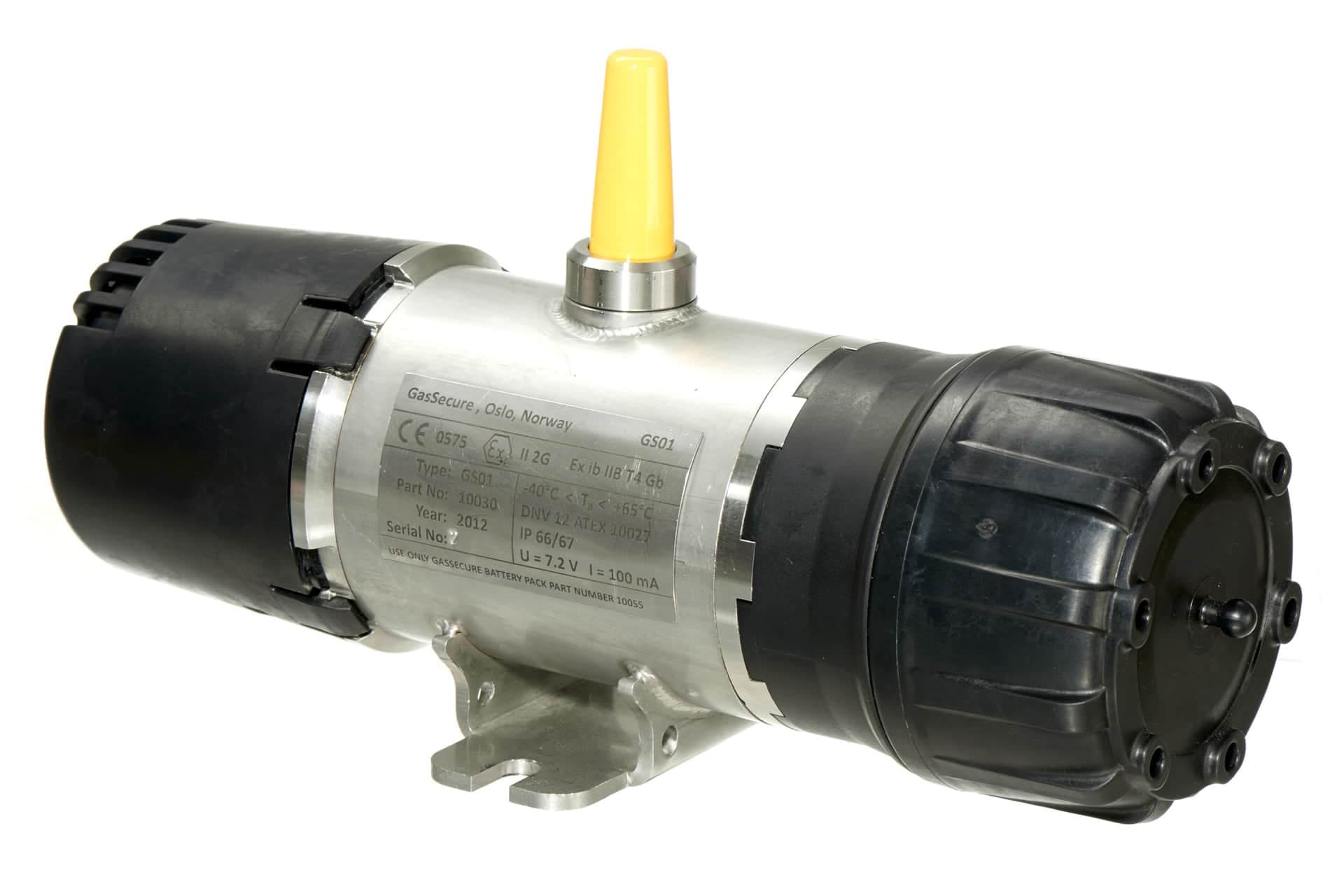

Wireless infrared gas transmitterMonitors flammable hydrocarbon gases and vapoursFeatures completely wireless signal transmission and power supply
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about GasSecure GS01
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Wireless Transmitter
- Measuring Principle
- Infrared
- Response time
- <= 5 seconds
- SIL
- SIL 2 (IEC 61508-1-3)
Specifications 2
- Power Supply
- Lithium-Thionyl Chloride Battery
- Temperature (operation)
- -30°C - 55°C
- Humidity
- 0 to 100% r.h.
- Dimensions (H × W × D)
- 11x30x17 cm
- Weight
- 2.8 Kg
- Degree of protection (IP class)
- IP66/67
Specifications 4
- Name
- More information
- Methane
- More information
Specifications 5
- Product
- Order number
- GS01 Wireless IR Gas Detector -10m FM
- AL20738
- GS01 Wireless IR Gas Detector -20m FM
- AL20739
- GS01 Wireless IR Gas Detector -5m FM
- AL20737
- GS01 Wireless IR Gas Detector FM
- 3705976
