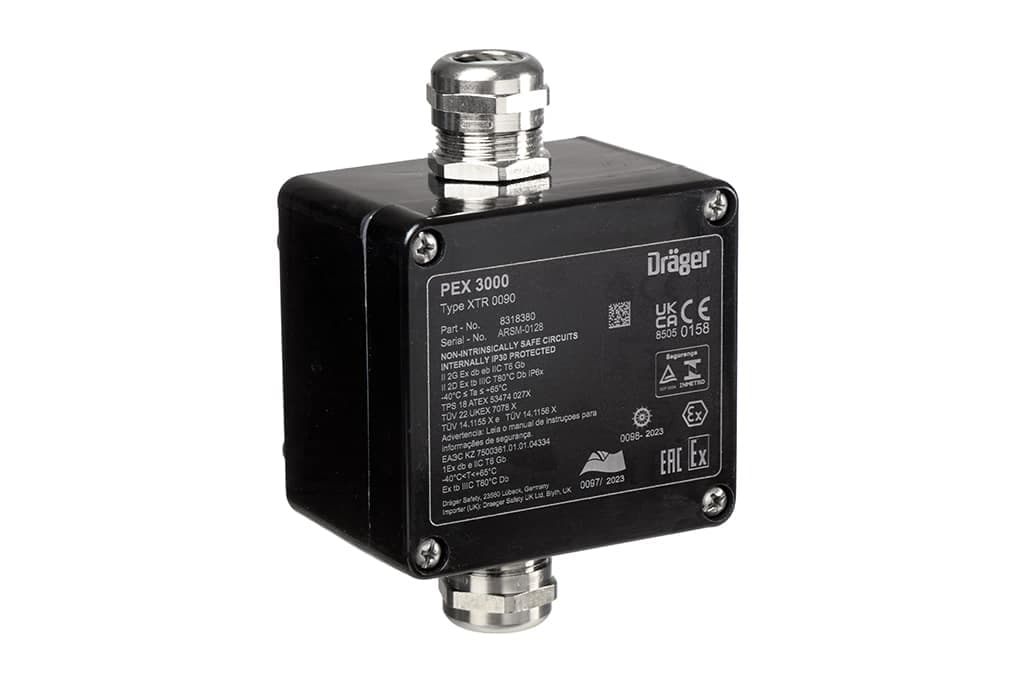

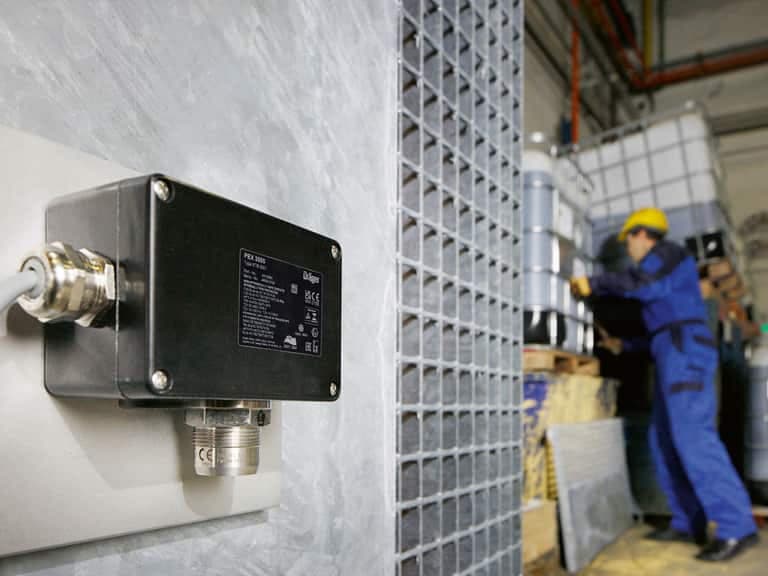

Dräger PEX 3000
The Dräger PEX 3000 transmitter detects flammable gases and vapours in concentrations below their lower explosive limit (100 % LEL). It helps you to increase the explosion protection of your plant. Its heat-tone sensor reacts to gas within just a few seconds, and the measurement signal remains particularly stable over the long term.
Summary
Product overview
Transmitter for continuous monitoring of flammable gases and vapoursOffers drift-free optics and robust product designSuitable for the harshest industrial environments
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger PEX 3000
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Catalytic Bead Sensor
- Response time
- < 20 seconds
- SIL
- SIL 1
Specifications 2
- Power Supply
- 12 to 30 V DC
- Temperature (operation)
- -40°C - 65°C
- Humidity
- 5 to 95 % r.H.
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 14.5x8x5.5 cm
- Weight
- 600 g
- Housing Material
- Glass fiber reinforced polyester (GFRP)
- Degree of protection (IP class)
- IP66
Specifications 4
- Name
- More information
- Acetic Acid
- More information
- Acetic acid butyl ester
- More information
- Acetone
- More information
- Acetylene
- More information
- Ammonia (anhydrous)
- More information
- Benzene
- More information
- Dimethyl ether
- More information
- Ethanol
- More information
- Ethyl acetate
- More information
- Ethyl ether
- More information
- Ethylene
- More information
- Ethylene oxide
- More information
- Hexane
- More information
- Hydrogen
- More information
- Liquified petroleum gas (L.P.G.)
- More information
- Methane
- More information
- Methanol
- More information
- Methyl methacrylate
- More information
- n-Butane
- More information
- n-Pentane
- More information
- Nonane
- More information
- Octane
- More information
- Propane
- More information
- Propylene
- More information
- Propylene oxide
- More information
- Toluene
- More information
- 1,2-Dimethylbenzene
- More information
- 1,3-Butadiene
- More information
- 2-Butanone
- More information
- 2-Propanol
- More information
Specifications 5
- Product
- Order number
- DrägerSensor Ex LC M
- 6810350
- DrägerSensor PR M DQ
- 6814140
Related products
Additional products from the same category.

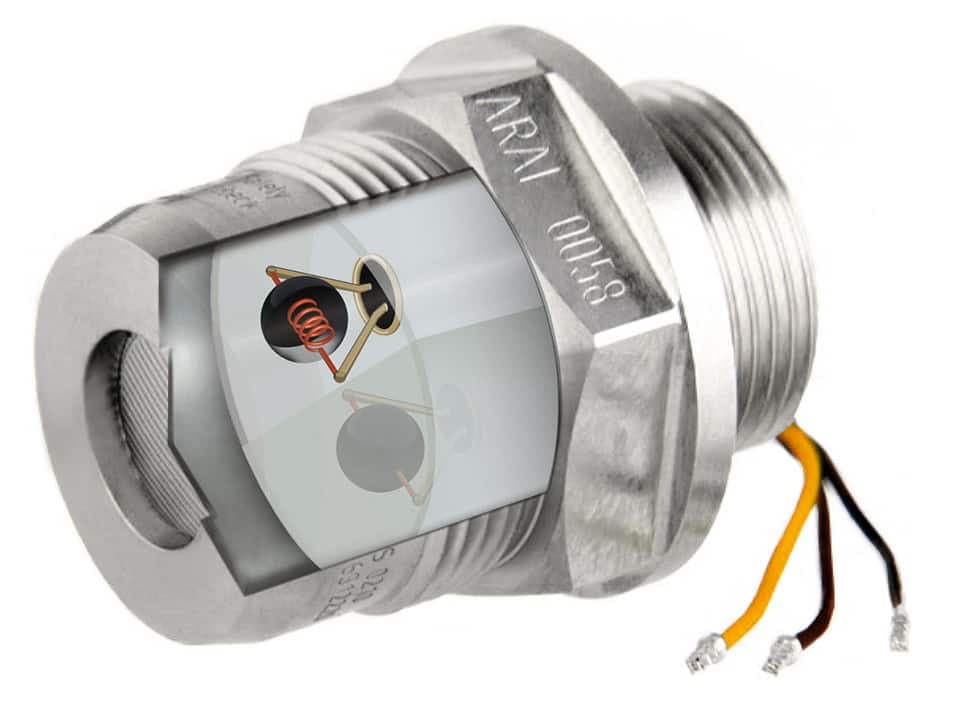

Catalytic Bead DrägerSensor®
