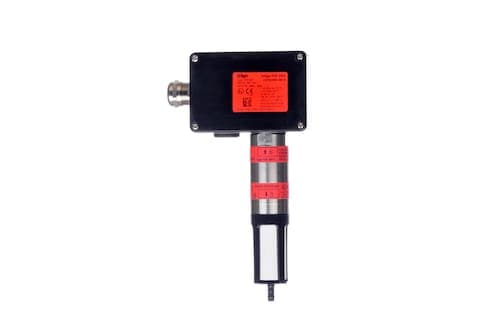

Dräger PIR 3000
Explosion proof point infrared gas detectorContinuous monitoring of flammable gases and vapoursBuilt for the harshest industrial environments
Summary
Product overview
Explosion proof point infrared gas detectorContinuous monitoring of flammable gases and vapoursBuilt for the harshest industrial environments
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger PIR 3000
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Highlights
Structured product sections from the official source page.
360° Product View
Interactive or visual section carried over from the official product page.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Infrared
- Response time
- <= 30 seconds
- Cable entry
- M25 or 3/4" NPT
- SIL
- SIL 2 (IEC 61508-2)
Specifications 2
- Power Supply
- 10 to 30 VDC
- Temperature (operation)
- -40°C - 65°C
- Humidity
- 0 to 100% r.h.
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 17x3.7x3.7 cm
- Weight
- 550 g
- Housing Material
- Stainless steel SS 316
- Degree of protection (IP class)
- IP65/66/67
Specifications 4
- Name
- More information
- Acetone
- More information
- Ethanol
- More information
- Ethyl acetate
- More information
- Ethylene
- More information
- Hexane
- More information
- Liquified petroleum gas (L.P.G.)
- More information
- Methane
- More information
- Methanol
- More information
- n-Butane
- More information
- n-Pentane
- More information
- Nonane
- More information
- Octane
- More information
- Propane
- More information
- Propylene
- More information
- Toluene
- More information
- 2-Methylpropane
- More information
- 2-Propanol
- More information
Specifications 5
- Product
- Order number
- Dräger PIR 3000 complete set d
- 6811180
- Dräger PIR 3000 complete set e
- 6811160
- Dräger PIR 3000 complete set e2
- 6811270
