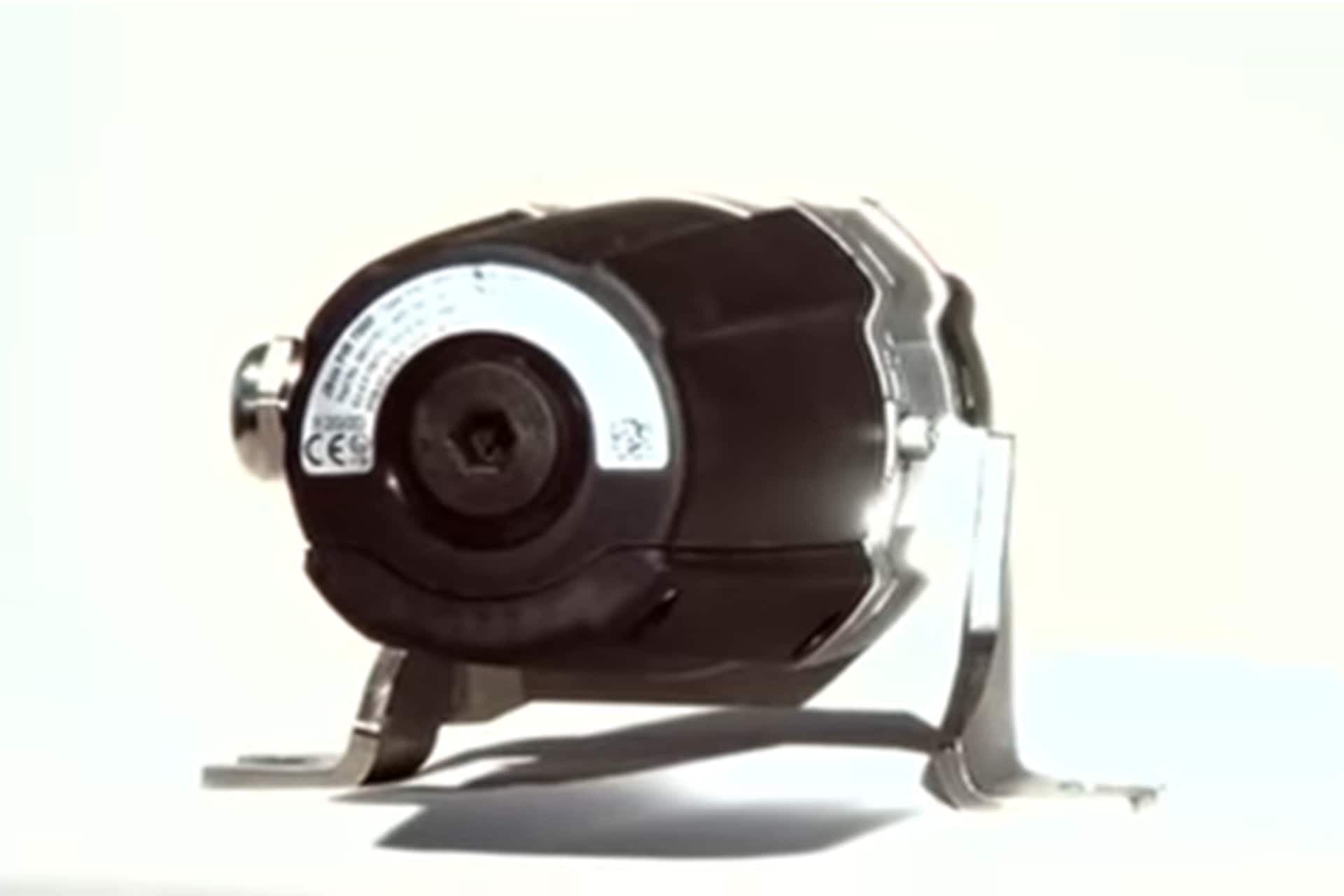

Dräger PIR 7200
Explosion proof point infrared gas detectorContinuous monitoring of carbon dioxideDrift-free optics and robust product design
Summary
Product overview
Explosion proof point infrared gas detectorContinuous monitoring of carbon dioxideDrift-free optics and robust product design
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger PIR 7200
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Infrared
- Response time
- < 1 second (fast response)
- Cable entry
- M25 or 3/4" NPT
- SIL
- SIL 2 (IEC 61508-1-3)
Specifications 2
- Power Supply
- 13 to 30 VDC, 3-wire
- Temperature (operation)
- -40°C - 77°C
- Humidity
- 0 to 100% r.h.
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 8.9x16x8.9 cm
- Weight
- 2.2 Kg
- Housing Material
- Stainless steel SS316 L
- Degree of protection (IP class)
- IP66/67
Specifications 4
- Name
- More information
- Carbon dioxide
- More information
Specifications 5
- Product
- Order number
- Dräger PIR 7200 (M25) HART complete set (Stainless Steel)
- 6812290
- Dräger PIR 7200 (NPT) HART complete set (Aluminum)
- 6813050
- Dräger PIR 7200 (NPT) HART complete set (Stainless Steel)
- 6813055
- PIR7200 424 NPT NON-HART for P5/8k
- 6813124
