Dräger PointGard 3700

The Dräger PointGard 3700 is a complete 1-channel gas detection system for measuring combustible gases or vapours in ambient air. In its robust yet compact housing with IP66 protection class, you have all the necessary alarm equipment needed.

Enquire nowOfficial sourceBrowse category
Dräger PointGard 3700 Flammable Gas Detectors
SafetyFixed Gas Detection8 images
The PointGard 3700 in a green / red alarm scheme. This combination differentiates between a safe condition and a hazardous condition. In addition, the PointGard 3700 can express through the green light whether your machine under test is issuing a fault.

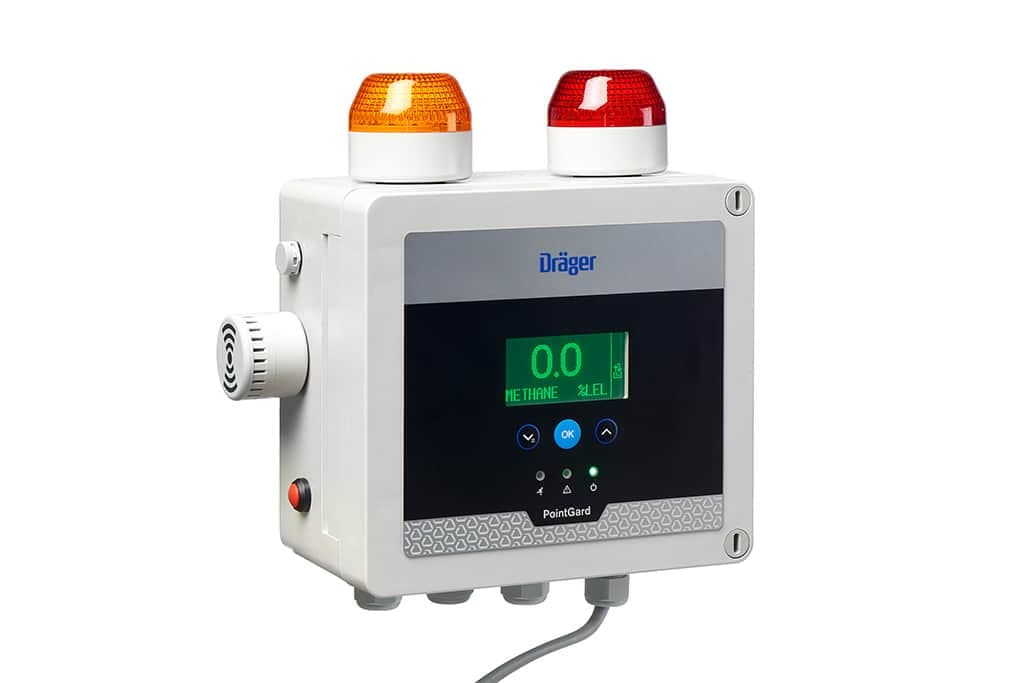

The PointGard 3700 in a yellow / red alarm scheme. With this combination, a pre-alarm as well as a main alarm can be easily distinguished.

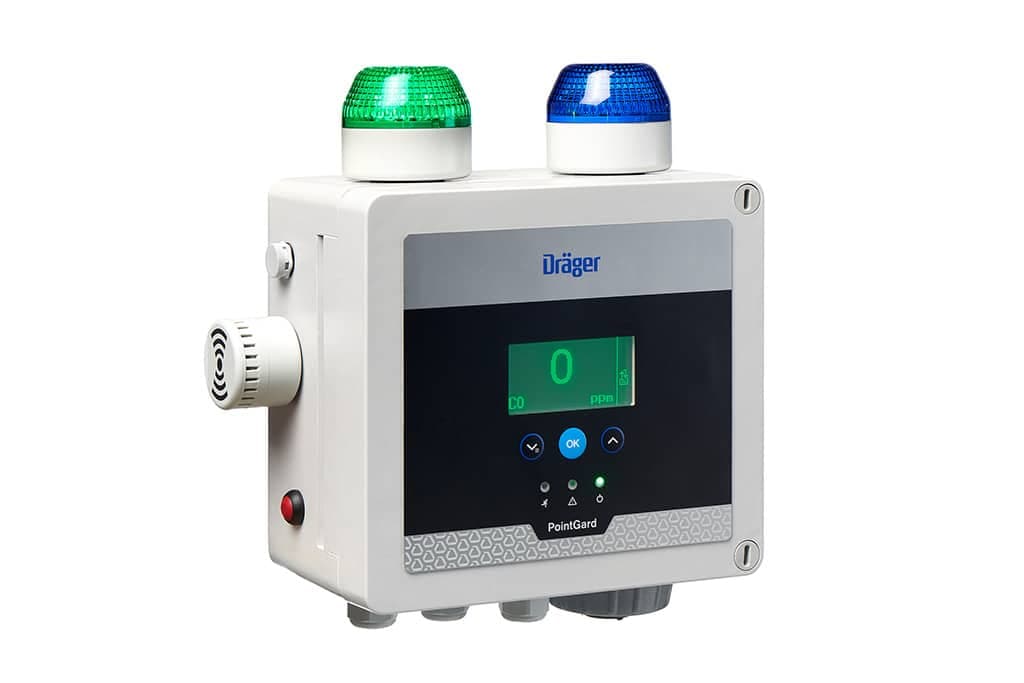

The versatility of the PointGard 3700 is high. Many different gases can be measured. If these are to be represented by different colors, the PointGard 3700 offers blue in addition to the yellow, green and red lamp. (in this picture exemplary a PointGard 3100 is shown)

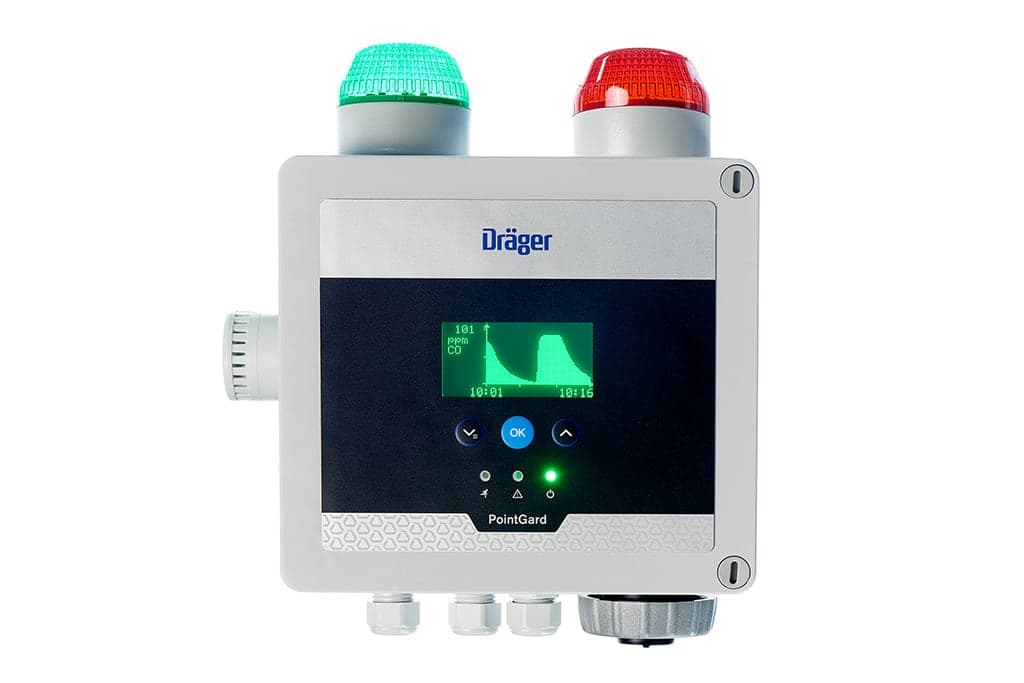

The PointGard 3700 allows you to graphically display the concentration trend over the last 15 minutes. This can help you to draw conclusions whether the measured value will continue to rise / fall or whether there are short-term peaks. The concentration curve can help you to further analyze your application and to improve weak points. (in this picture a PointGard 3100 is shown as an example)

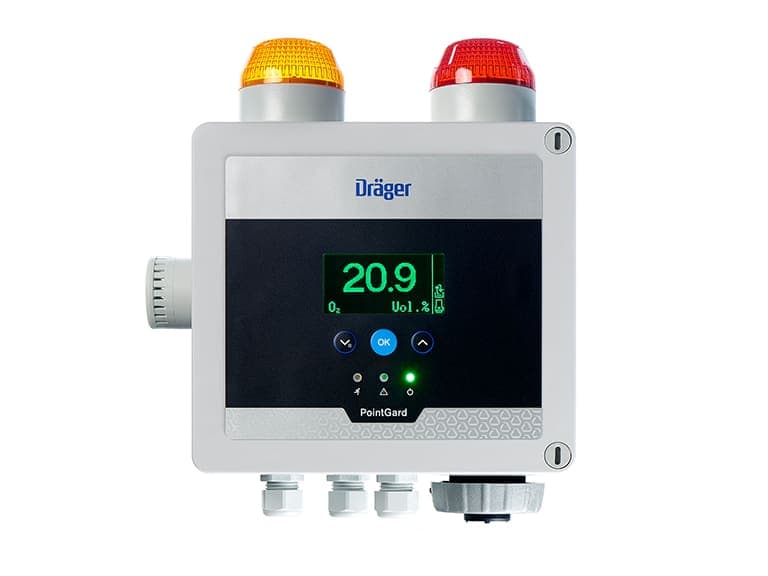

Toxic Gases and Oxygen Detectors - PointGard-3100

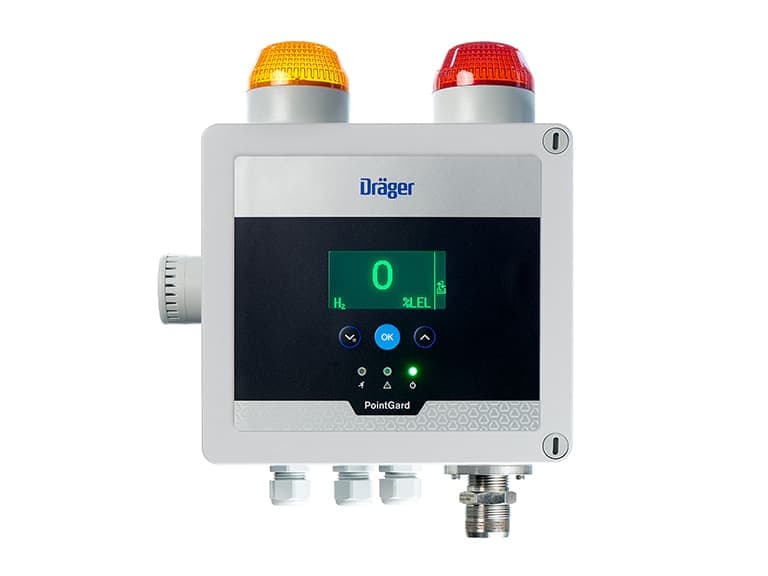

Flammable Gas Detectors - PointGard-3200
Toxic Gases and Oxygen Detectors - PointGard-3720

Summary

Product overview

complete 1-channel gas detection systemMonitors combustible gases or vapours in ambient airUses high-performance Dräger PIR 7000 infrared sensorRemote sensor monitoring up to 30 meters away

Category

Fixed Gas Detection

This page is structured from official Draeger content and reorganized for local B2B navigation.

Product enquiry

Enquire about Dräger PointGard 3700

Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.

Selected productDräger PointGard 3700

Your enquiry is stored in the site database and appears in the admin CRM. Email delivery and bot notifications can be enabled from environment settings, including a webhook bot hosted on Fly.io.

Specifications

Technical groups extracted from the official Draeger detail page.

Specifications 1

Type
Self-contained gas monitor
Measuring Principle
Infrared
Cable entry
1/2" NPT

Specifications 2

Power Supply
10-30 V (DC) / 100-240 V (AC)
Temperature (operation)
-20°C - 50°C
Humidity
0 to 95% r. h., noncondensing
Pressure (hPa)
700 - 1300
Dimensions (H × W × D)
25.5x28x12 cm
Weight
3.8 Kg
Housing Material
Glass fiber reinforced polyester (GFRP)
Degree of protection (IP class)
IP66
