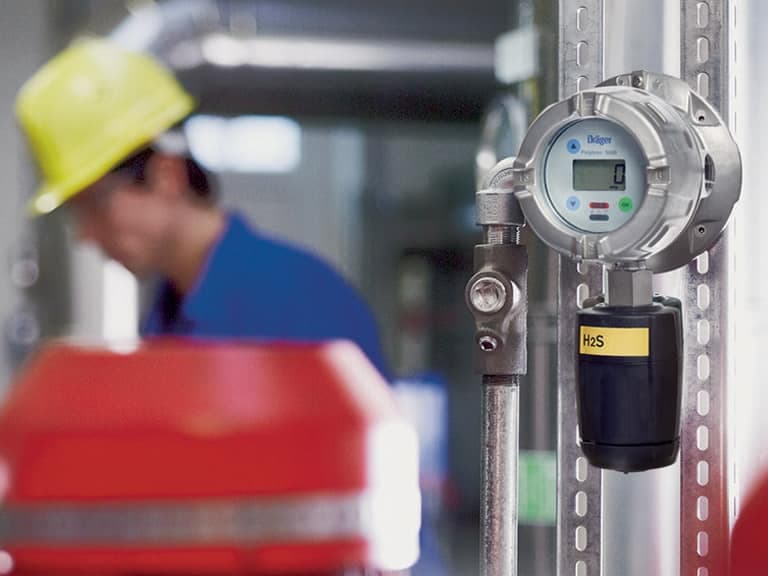

Dräger Polytron 5100 EC

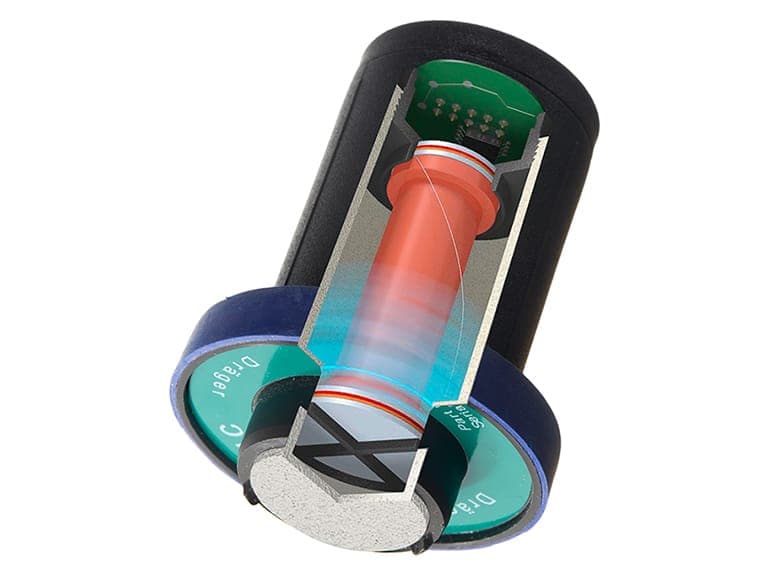

The Dräger Polytron 5100 EC is a cost-effective explosion-proof transmitter for the detection of toxic gases or oxygen in standard applications. It uses a high performance plug-and-play electrochemical DrägerSensor to detect a specific gas. A 2- or 3-wire 4 to 20 mA output with relays makes it compatible with most control systems.
Summary
Product overview
Monitors toxic gases or oxygen in standard applicationsUses a high-performance plug-and-play electrochemical DrägerSensorRobust, compact housing with IP66 protection
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Polytron 5100 EC
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Electrochemical
- Cable entry
- M20 or 3/4" NPT
- SIL
- SIL 2 (IEC 61508-2)
Specifications 2
- Power Supply
- 10 to 30 V CD, 3-wire
- Temperature (operation)
- -40°C - 65°C
- Humidity
- 0 to 100% r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 28x15x13 cm
- Weight
- 5 Kg
- Housing Material
- Epoxy coated copper-free aluminum or stainless steel SS316 L
- Degree of protection (IP class)
- IP65/66/67
Specifications 4
- Name
- More information
- Acetaldehyde
- More information
- Acetic Acid
- More information
- Acetic acid ethenyl ester
- More information
- Acetylene
- More information
- Ammonia (anhydrous)
- More information
- Antimony pentachloride
- More information
- Arsine
- More information
- Boron tribromide
- More information
- Boron trichloride
- More information
- Boron trifluoride
- More information
- Bromine (gaseous)
- More information
- Carbon monoxide
- More information
- Chlorine
- More information
- Chlorine dioxide
- More information
- Chlorosulphonic acid
- More information
- Diborane
- More information
- Dichlorosilane
- More information
- Diethylamine
- More information
- Dimethyl disulfide
- More information
- Dimethyl sulphide
- More information
- Dimethylamine (anhydrous)
- More information
- Disilane
- More information
- Ethanol
- More information
- Ethyl ether
- More information
- Ethyl mercaptan
- More information
- Ethylamine
- More information
- Ethylene
- More information
- Ethylene oxide
- More information
- Fluorine
- More information
- Formaldehyde
- More information
- Formic acid
- More information
- Germanium tetrachloride
- More information
- Germanium tetrafluoride
- More information
- Germanium tetrahydride
- More information
- Hydrazine (anhydrous)
- More information
- Hydrogen
- More information
- Hydrogen bromide (anhydrous)
- More information
- Hydrogen chloride (anhydrous)
- More information
- Hydrogen cyanide (anhydrous)
- More information
- Hydrogen fluoride (anhydrous)
- More information
- Hydrogen iodide solution (57%)
- More information
- Hydrogen peroxide
- More information
- Hydrogen selenide (as Se) (anhydrous)
- More information
- Hydrogen sulphide
- More information
- Isopropylamine
- More information
- Isopropylmercaptan
- More information
- Methanol
- More information
- Methyl hydrazine
- More information
- Methyl mercaptan
- More information
- Methylamine (anhydrous)
- More information
- N,N-Dimethylethylamine
- More information
- N,N-Dimethylhydrazine
- More information
- Nitric acid, fuming
- More information
- Nitric oxide
- More information
- Nitrogen dioxide
- More information
- Oxygen
- More information
- Phosgene
- More information
- Phosphine
- More information
- Phosphorus oxychloride
- More information
- Phosphorus trichloride
- More information
- Propyl mercaptan
- More information
- Propylene
- More information
- Propylene oxide
- More information
- Silane
- More information
- Silicon tetrachloride
- More information
- Silicon tetrafluoride
- More information
- Stannic chloride
- More information
- Sulphur dioxide
- More information
- Tetrahydrofuran
- More information
- Tetrahydrothiophene
- More information
- Thionyl chloride
- More information
- Titanium tetrachloride
- More information
- Trichlorosilane
- More information
- Triethylamine
- More information
- Trimethylamine (anhydrous)
- More information
- Vinyl chloride
- More information
- 1,3-Butadiene
- More information
- 2-Methyl-2-propanethiol
- More information
- 2-Propanol
- More information
Specifications 5
- Product
- Order number
- DrägerSensor Acidic Compounds AC
- 6810595
- DrägerSensor Cl2
- 6809665
- DrägerSensor CO
- 6809605
- DrägerSensor CO LH
- 6812570
- DrägerSensor CO LS
- 6809620
- DrägerSensor COCl2
- 6809930
- DrägerSensor H2
- 6809685
- DrägerSensor H2O2 LC
- 6809705
- DrägerSensor H2S
- 6810435
- DrägerSensor H2S HC
- 6809710
- DrägerSensor H2S LC
- 6809610
- DrägerSensor HCN LC
- 6813200
- DrägerSensor Hydride
- 6809635
- DrägerSensor N2H4
- 6810180
- DrägerSensor NH3 TH
- 6800055
- DrägerSensor NH3 HC
- 6809645
- DrägerSensor NH3 LC
- 6809680
- DrägerSensor NH3 TL
- 6813095
- DrägerSensor NO
- 6809625
- DrägerSensor NO2 LC
- 6813205
- DrägerSensor O2 LS
- 6809630
- DrägerSensor OV 1
- 6810740
- DrägerSensor SO2
- 6809660
