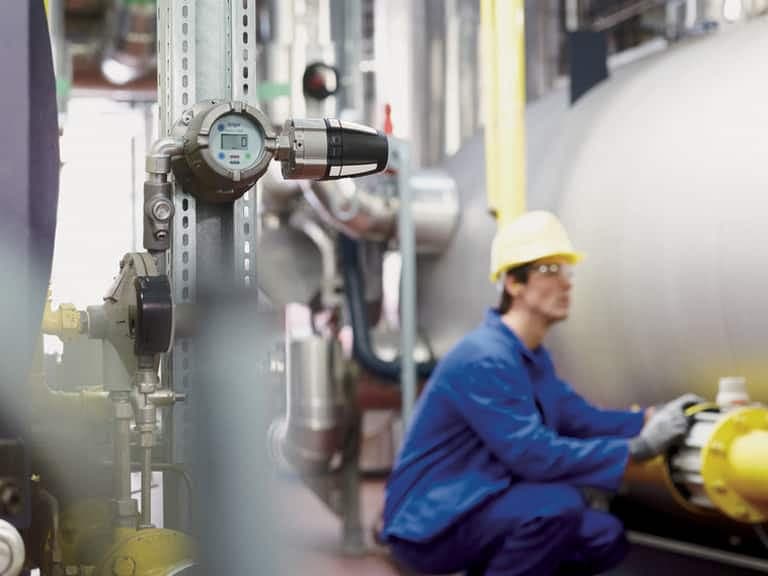

Dräger Polytron 5720 IR
The Dräger Polytron 5720 IR is a cost-effective explosion proof transmitter for the detection of carbon dioxide in volume percentage or ppm. It uses a high-performance infrared Dräger PIR 7200 sensor that can be submerged in water without damage. A 3-wire 4-to-20 mA analogue output with relays makes it compatible with most control systems.
Summary
Product overview
Monitors carbon dioxide in volume percentage or ppmUses a high-performance infrared Dräger PIR 7200 sensorCan be submerged in water without damage
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Polytron 5720 IR
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Infrared
- Response time
- <= 8 seconds
- Cable entry
- M20 or 3/4" NPT
- SIL
- SIL 2 (IEC 61508-2)
Specifications 2
- Power Supply
- 10 to 30 VDC, 3-wire
- Temperature (operation)
- -40°C - 77°C
- Humidity
- 0 to 100% r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 28x15x13 cm
- Weight
- 5.7 Kg
- Housing Material
- Epoxy coated copper-free aluminum or stainless steel SS316 L
- Degree of protection (IP class)
- IP65/66/67
Specifications 4
- Name
- More information
- Carbon dioxide
- More information
Specifications 5
- Product
- Order number
- PIR7200 424 NPT NON-HART for P5/8k
- 6813124
