Dräger Polytron 8200 CAT
The Dräger Polytron 8200 CAT is an explosion-proof high-end transmitter designed for detecting flammable gases and vapours. It uses the catalytic DrägerSensor Ex… DQ. In addition to the 3-wire operation with a 4 to 20 mA analogue output, it also offers HART, fieldbus options and Modbus, allowing you to integrate the transmitter with most control systems in your gas detection system.
Summary
Product overview
Advanced explosion-proof transmitter for flammable gasesUses a catalytic bead DrägerSensor® ExDetects most flammable gases and vapours
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Polytron 8200 CAT
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Catalytic Bead Sensor
- Cable entry
- M20 or 3/4" NPT
- SIL
- SIL 2 (IEC 61508-1-3)
Specifications 2
- Power Supply
- 10 to 30 V, 3-wire
- Temperature (operation)
- -40°C - 80°C
- Humidity
- 0 to 100 % r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 28x15x13 cm
- Weight
- 4 Kg
- Housing Material
- Epoxy coated copper-free aluminum or stainless steel SS 316L
- Degree of protection (IP class)
- IP65/66/67
Specifications 4
- Name
- More information
- Acetic Acid
- More information
- Acetic acid butyl ester
- More information
- Acetone
- More information
- Acetylene
- More information
- Ammonia (anhydrous)
- More information
- Benzene
- More information
- Dimethyl ether
- More information
- Ethanol
- More information
- Ethyl acetate
- More information
- Ethyl ether
- More information
- Ethylene
- More information
- Ethylene oxide
- More information
- Hexane
- More information
- Hydrogen
- More information
- Liquified petroleum gas (L.P.G.)
- More information
- Methane
- More information
- Methanol
- More information
- Methyl methacrylate
- More information
- n-Butane
- More information
- n-Pentane
- More information
- Nonane
- More information
- Octane
- More information
- Propane
- More information
- Propylene
- More information
- Propylene oxide
- More information
- Toluene
- More information
- 1,2-Dimethylbenzene
- More information
- 1,3-Butadiene
- More information
- 2-Butanone
- More information
- 2-Propanol
- More information
Specifications 5
- Product
- Order number
- DrägerSensor PR NPT DQ
- 6814150
- Sensor Head Polytron SE Ex HT M DQ
- 6812720
- Sensor Head Polytron SE Ex LC M1 DD
- 6812722
- Sensor Head Polytron SE Ex LC M2 DD
- 6812721
- Sensor Head Polytron SE Ex PR M1 DQ 5000/8000
- 6812711
- Sensor Head Polytron SE Ex PR M2 DQ
- 6812710
Related products
Additional products from the same category.

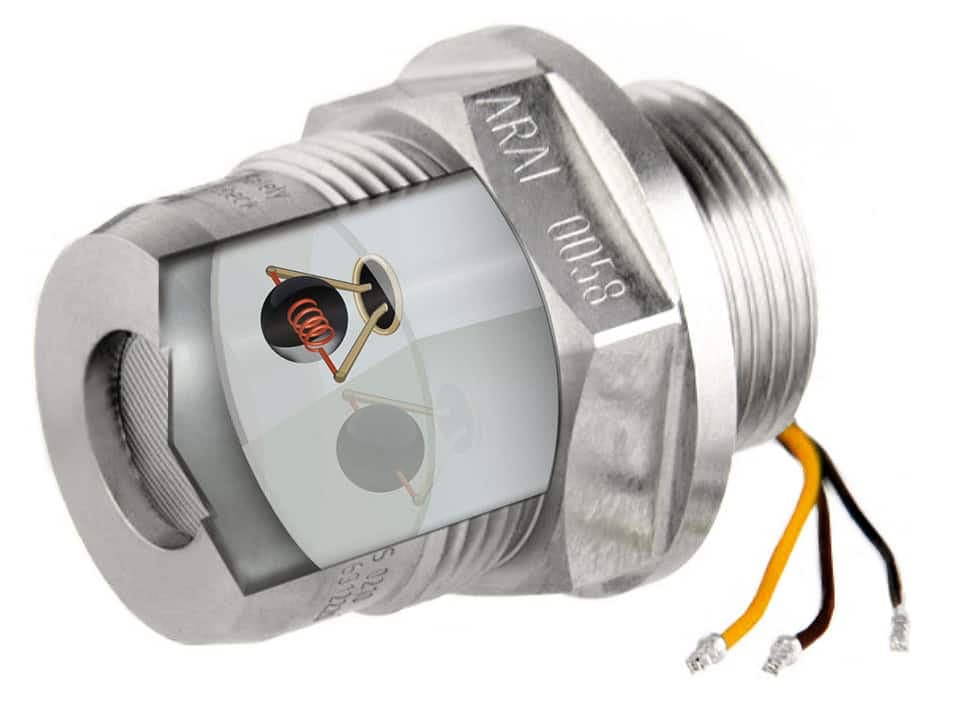

Catalytic Bead DrägerSensor®
