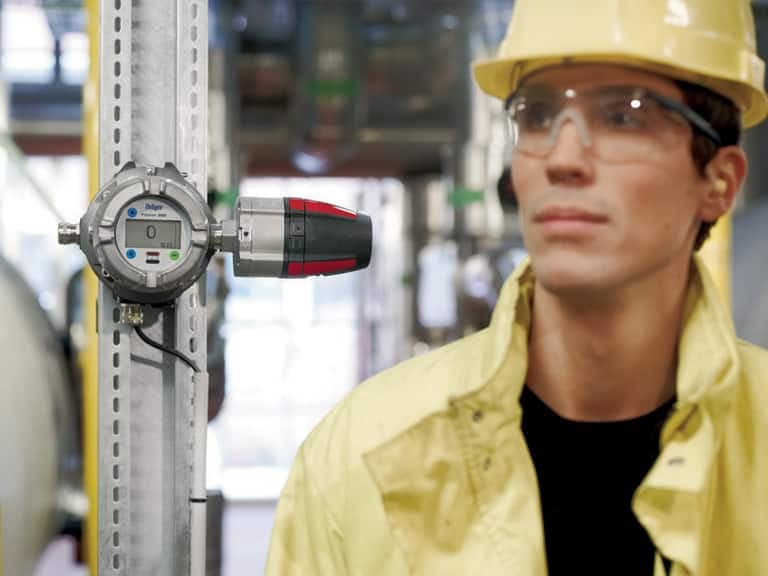

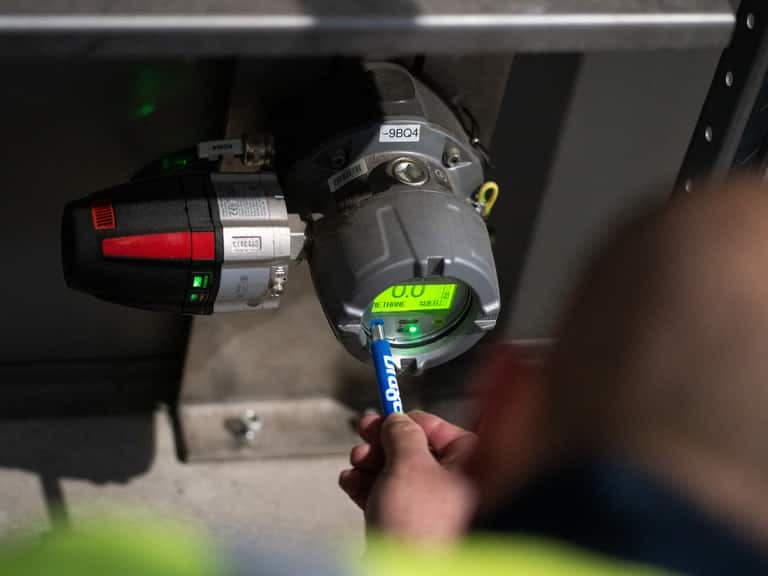

Dräger Polytron® 8700 IR
The Dräger Polytron® 8700 IR is an advanced explosion proof transmitter for the detection of combustible gases in the lower explosion limit (LEL). It uses a high performance infrared Dräger PIR 7000 sensor, which will quickly detect most common hydrocarbon gases. Besides a 3 wire 4 to 20 mA analogue output with relays, it also offers HART®, Modbus and Fieldbus making it compatible with most control systems.
Summary
Product overview
Advanced explosion-proof transmitter for combustible gasesUses a high-performance infrared Dräger PIR 7000 sensorDetects most common hydrocarbon gases
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger Polytron® 8700 IR
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Infrared
- Response time
- 4 seconds
- Cable entry
- M20 or 3/4" NPT
- SIL
- SIL 2 (IEC 61508-1-3)
Specifications 2
- Power Supply
- 10 to 30 V DC, 3-wire
- Temperature (operation)
- -40°C - 77°C
- Humidity
- 0 to 100 % r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 28x15x13 cm
- Weight
- 5.7 Kg
- Housing Material
- Epoxy coated copper-free aluminum or stainless steel SS 316L
- Degree of protection (IP class)
- IP65/66/67
Specifications 4
- Name
- More information
- Acetone
- More information
- Benzene
- More information
- Chlorobenzene
- More information
- Dichloromethane
- More information
- Epichlorohydrin
- More information
- Ethanol
- More information
- Ethyl acetate
- More information
- Ethylene
- More information
- Ethylene oxide
- More information
- Ethylmethylcarbonate
- More information
- Hexane
- More information
- i-octane
- More information
- Liquified petroleum gas (L.P.G.)
- More information
- Methane
- More information
- Methanol
- More information
- Methyl chloride
- More information
- Methyl chloroformate
- More information
- n-Butane
- More information
- n-Pentane
- More information
- Nonane
- More information
- Octane
- More information
- Propane
- More information
- Propylene
- More information
- Propylene oxide
- More information
- Styrene
- More information
- Toluene
- More information
- 1-Butene
- More information
- 1-Methoxy-2-propanol
- More information
- 1,2-Dichloroethane
- More information
- 1,2-Dichloropropane
- More information
- 1,2-Dimethylbenzene
- More information
- 1,3-Dichloropropene
- More information
- 2-Butanone
- More information
- 2-Methylpropane
- More information
- 2-Propanol
- More information
- 3-Chloro-1-propene
- More information
- 4-Methyl-2-pentanone
- More information
Specifications 5
- Product
- Order number
- Dräger PIR 7000 Typ 334 (NPT)
- 6813122
- Dräger PIR 7000 Typ 340 (NPT)
- 6813123
