Safety / Fixed Gas Detection

Dräger Pulsar 7000 Series

The Dräger Pulsar 7000 Series are stationary open path gas detectors for the detection of explosive hydrocarbons in gases and vapours. The robust design and the extremely rapid response time make the Dräger Pulsar 7000 Series a dependable solution for your requirements in the oil and gas industry, as well as the chemical industry.

Enquire nowOfficial sourceBrowse category
Dräger Pulsar 7000 Series Open Path detector for flammable gases and vapours
SafetyFixed Gas Detection8 images

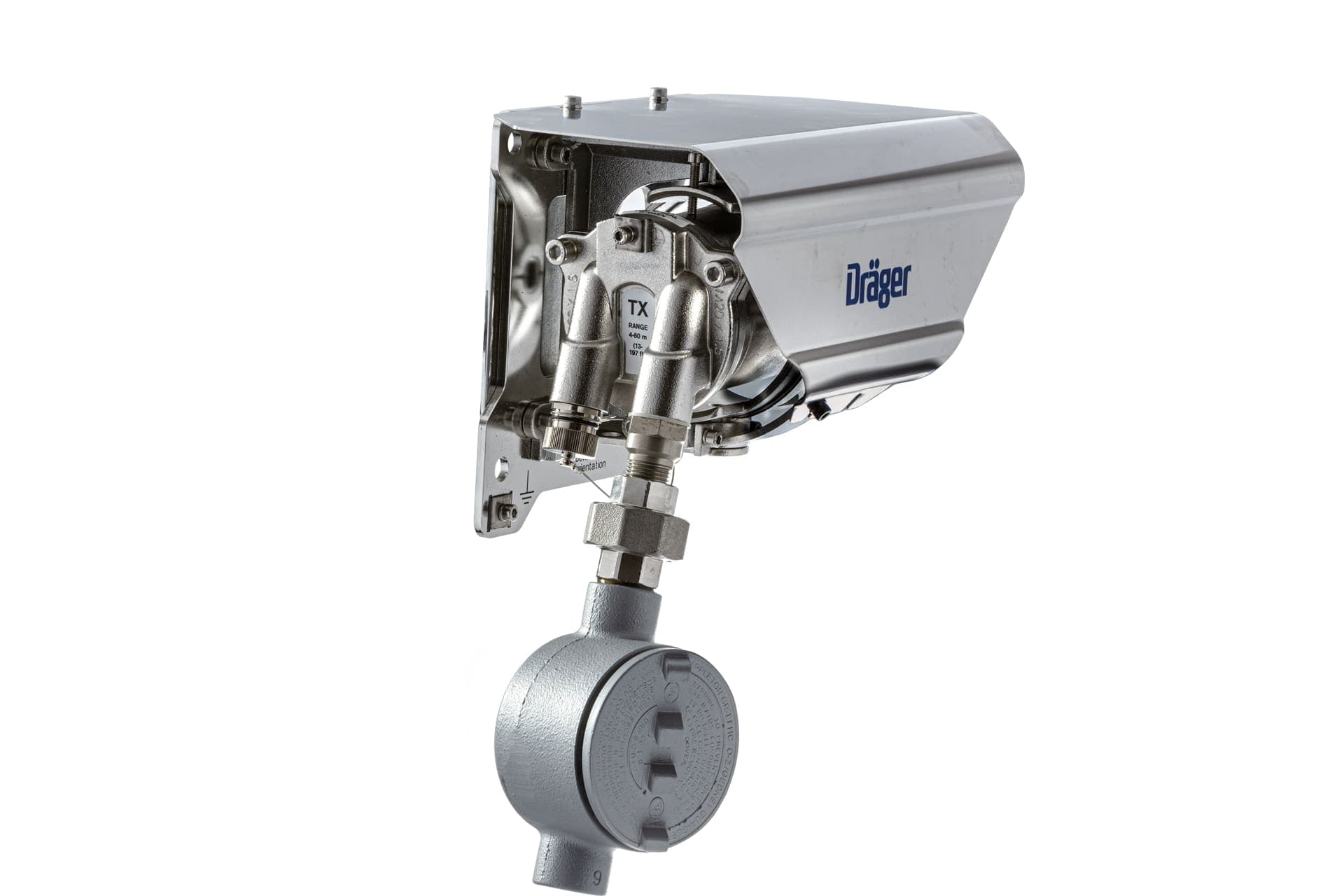

Dräger Pulsar 7000 Series Open Path detector for flammable gases and vapours

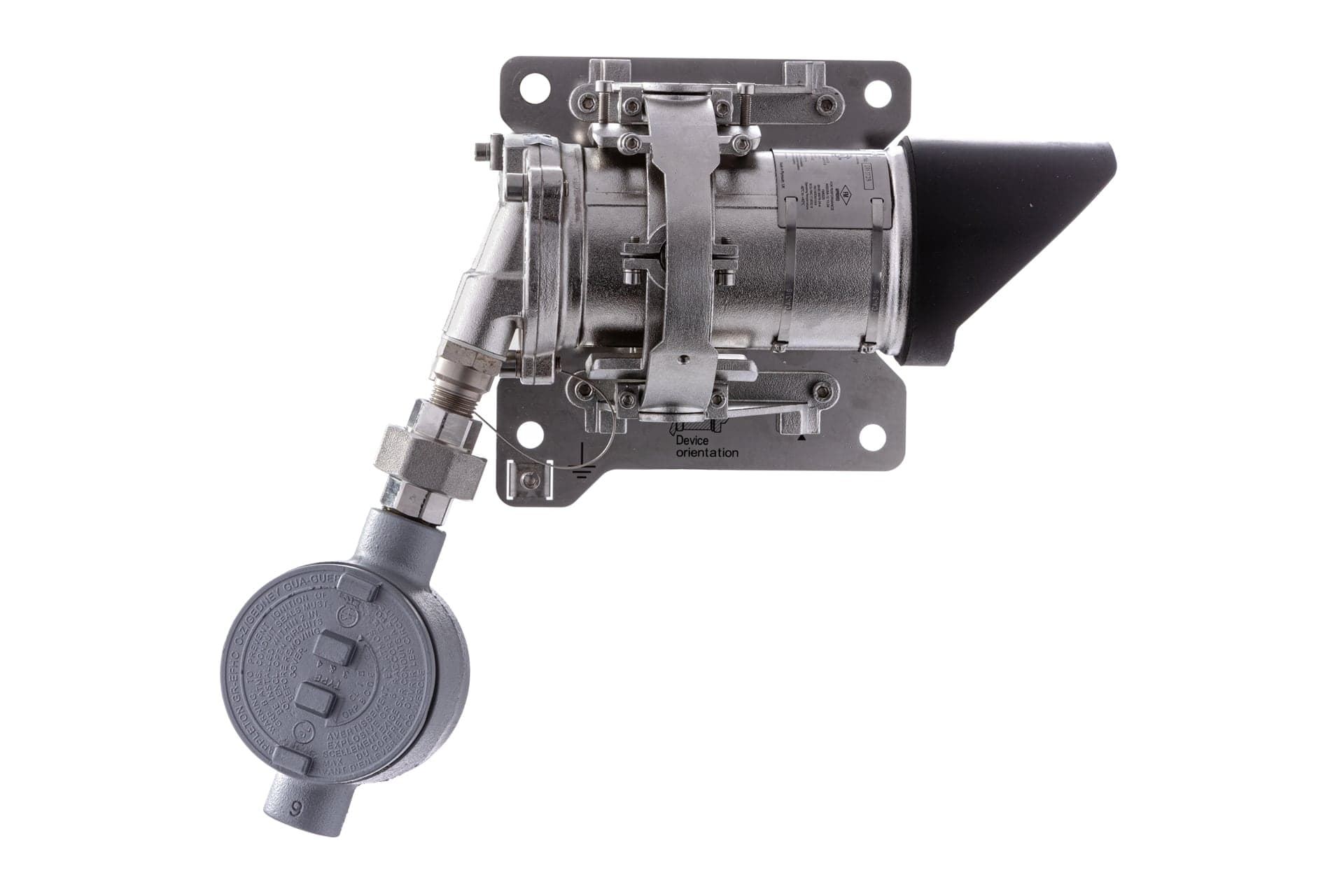

Dräger Pulsar 7000 Series Open Path duct mount detector

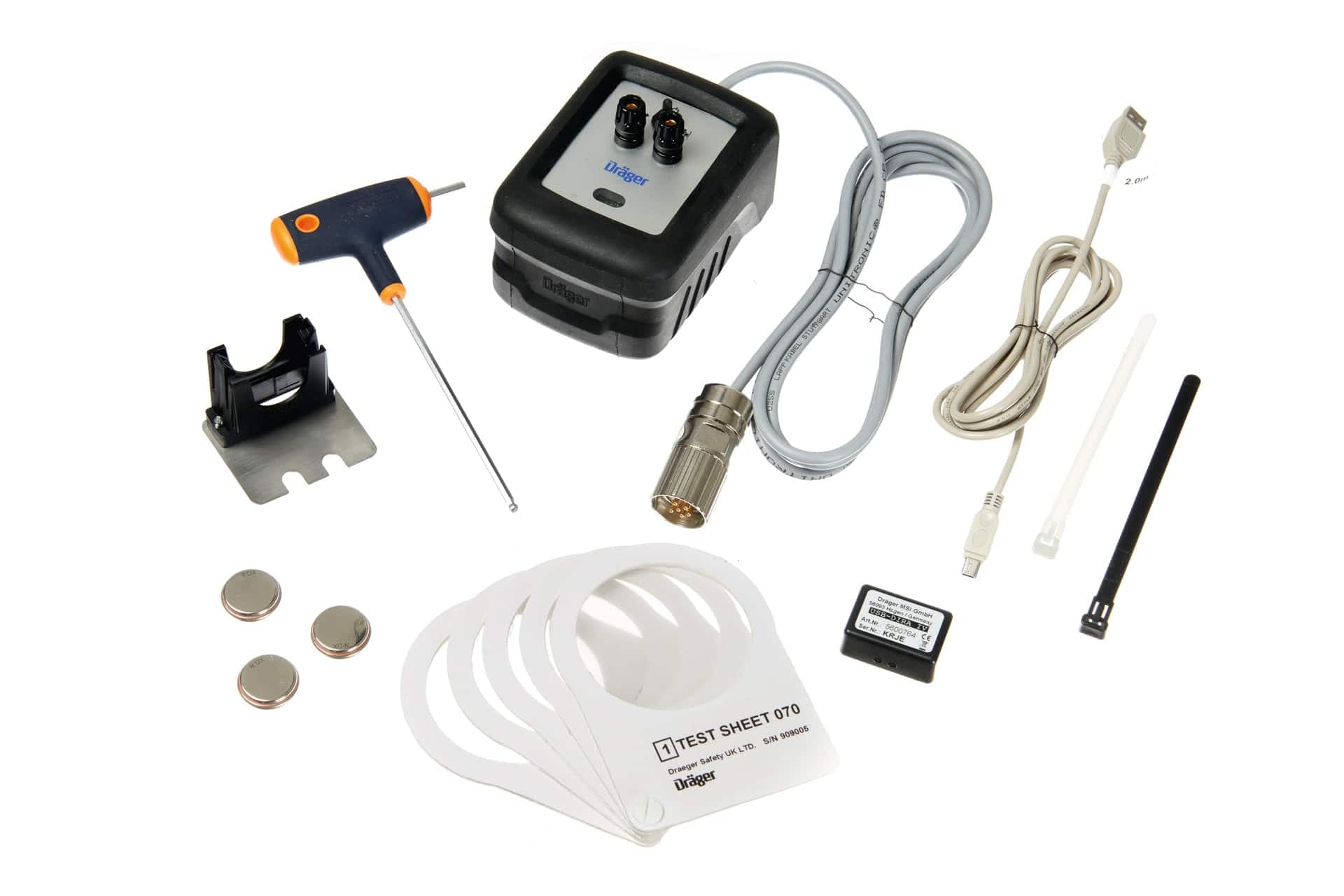

Dräger Pulsar 7000 Series Flammable Gas Detectors

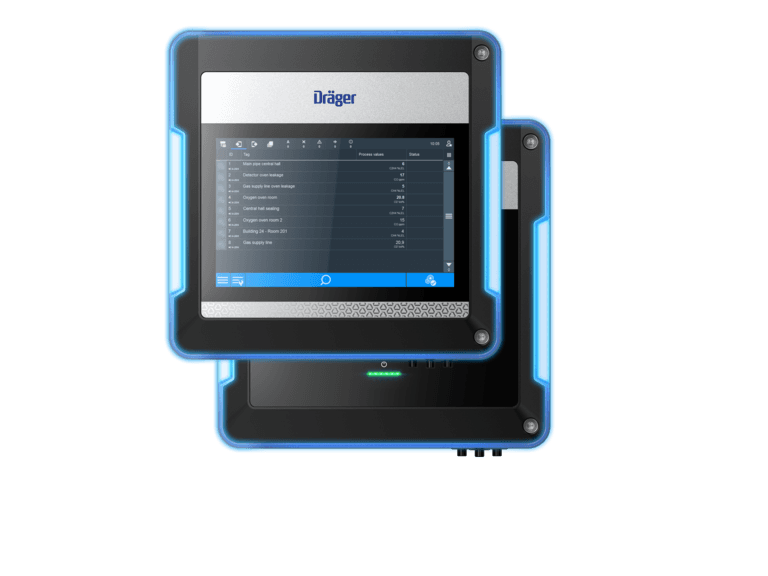

Controller - Dräger REGARD 3000 plus

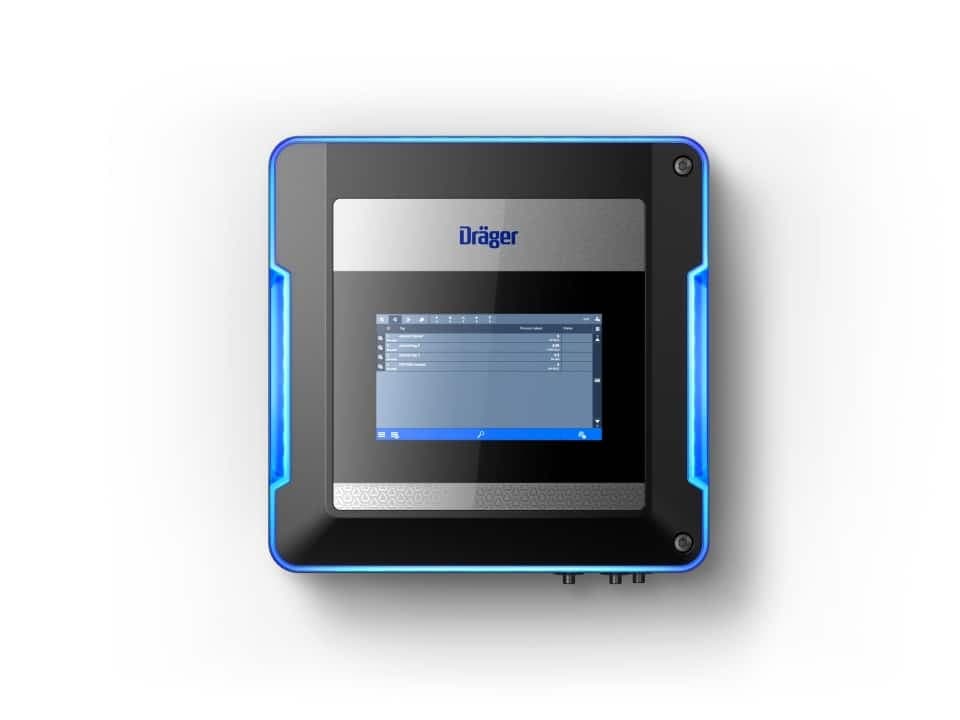

Controller - Dräger REGARD® 3000

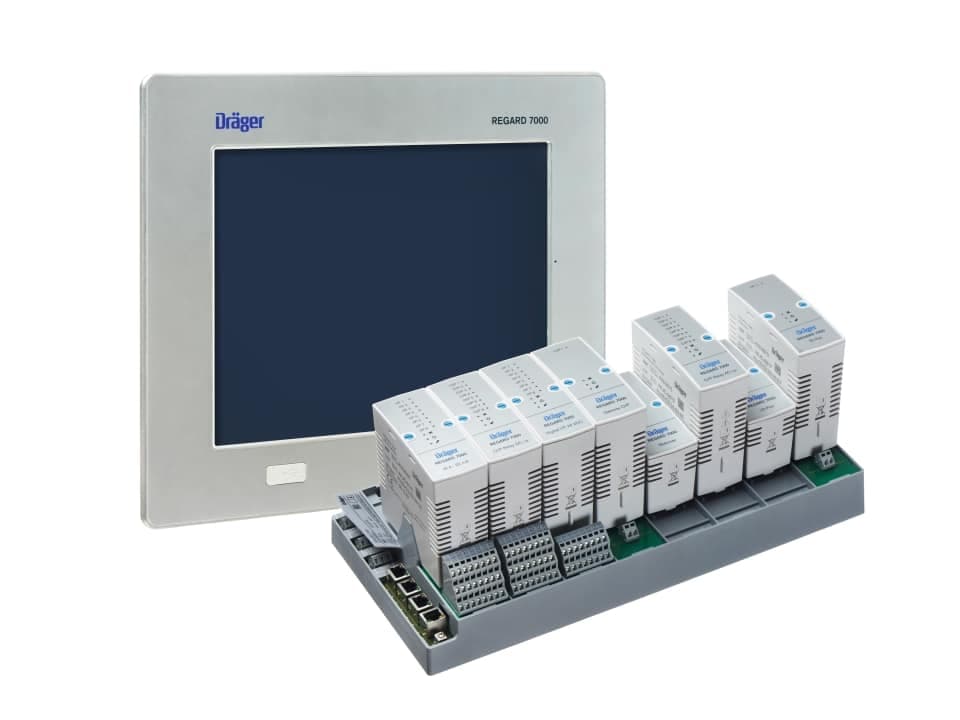

Controller - Dräger REGARD® 7000

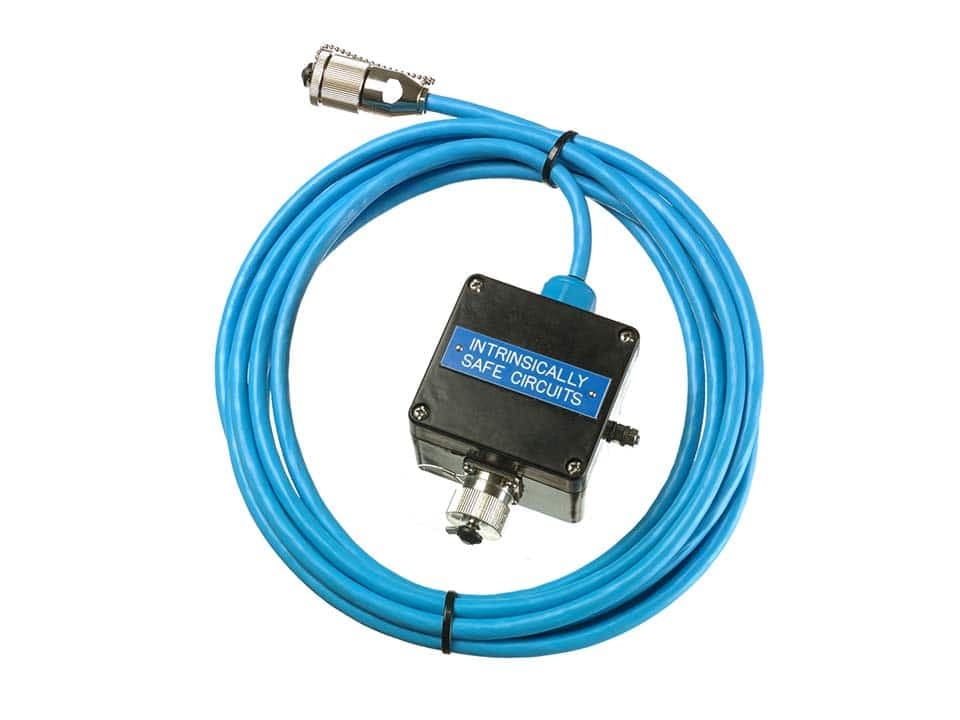

Communication port extention

Summary

Product overview

Open path gas detector for explosive hydrocarbonsRobust design and rapid response timeDependable solution for oil, gas, and chemical industries

Category

Fixed Gas Detection

This page is structured from official Draeger content and reorganized for local B2B navigation.

Product enquiry

Enquire about Dräger Pulsar 7000 Series

Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.

Selected productDräger Pulsar 7000 Series

Your enquiry is stored in the site database and appears in the admin CRM. Email delivery and bot notifications can be enabled from environment settings, including a webhook bot hosted on Fly.io.

Specifications

Technical groups extracted from the official Draeger detail page.

Specifications 1

Type
Open path
Measuring Principle
Infrared
Response time
<= 2 seconds
Cable entry
M20 or M25
SIL
SIL 2, SC 3 (IEC 61508-1-3)

Specifications 2

Power Supply
18 to 32 VDC
Temperature (operation)
-55°C - 60°C
Humidity
0 to 100 % r.h., non-condensing
Pressure (hPa)
800 - 1100
Dimensions (H × W × D)
43x67x17 cm
Weight
9.5 Kg
Housing Material
Measuring unit: Stainless steel 316L Junction box: Stainless steel 316L or GRP
Degree of protection (IP class)
IP66/67
