Safety / Fixed Gas Detection

Dräger REGARD® 3000

Monitor various gases and vapours with the modular Dräger REGARD® 3000 control system. Its multi-coloured status light signals the status of your gas detection system. The controller allows you to combine three different modules: Input, Relay and Gateway module. You can connect up to four analogue transmitters and eight relays in combination.

Enquire nowOfficial sourceBrowse category
Dräger REGARD® 3000
SafetyFixed Gas Detection8 images

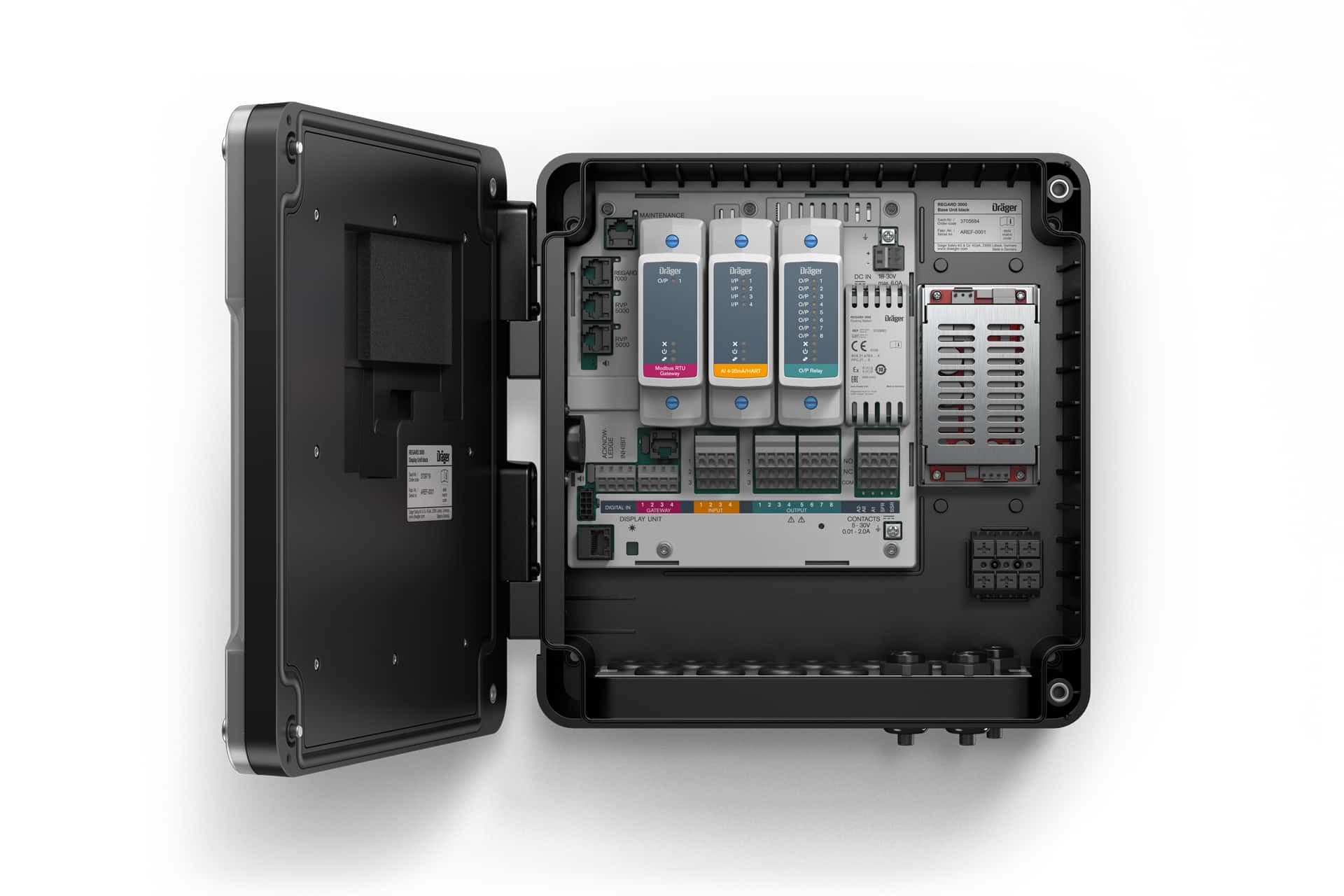

Dräger REGARD® 3000 Inside view

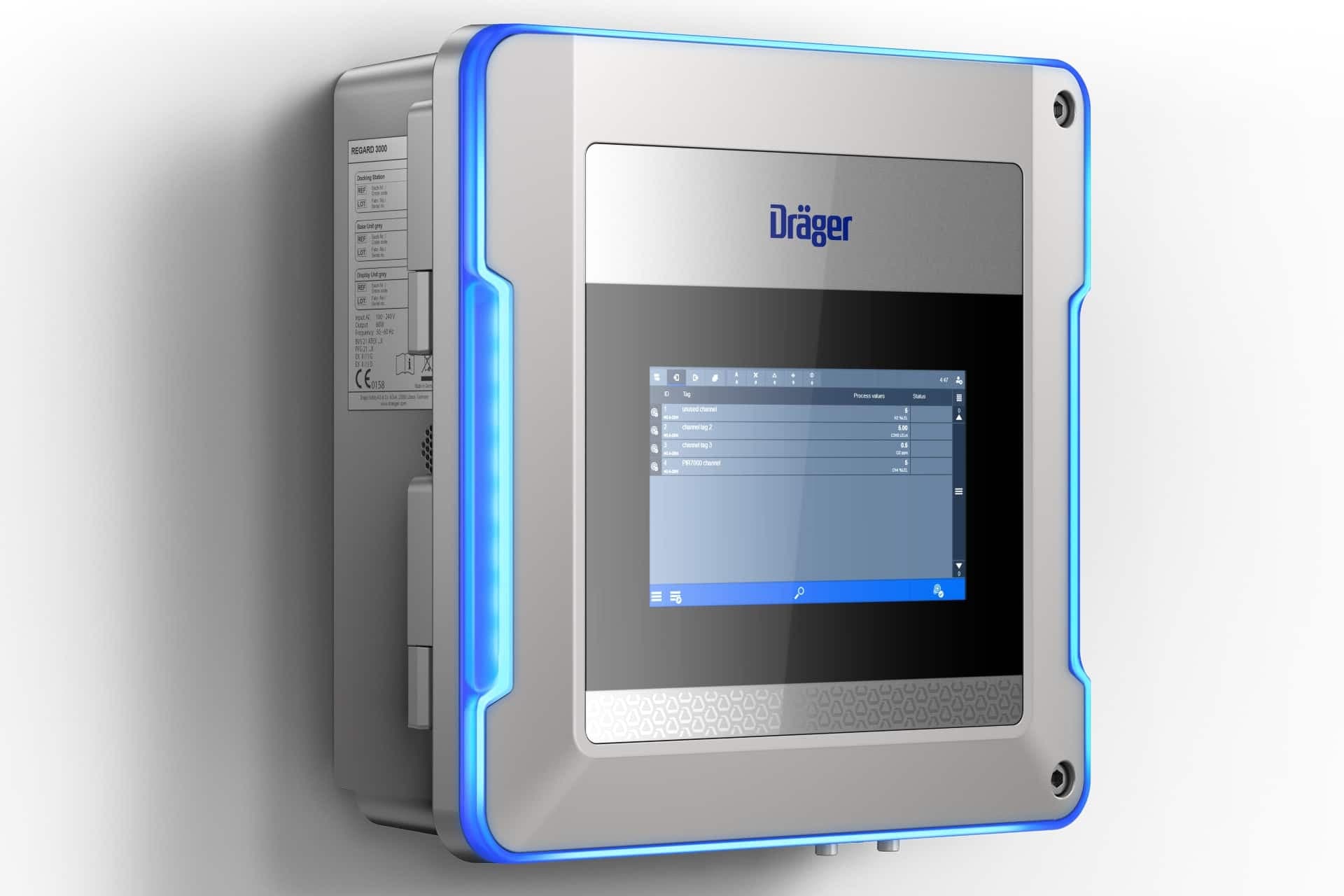

Dräger REGARD® 3000 in normal operation

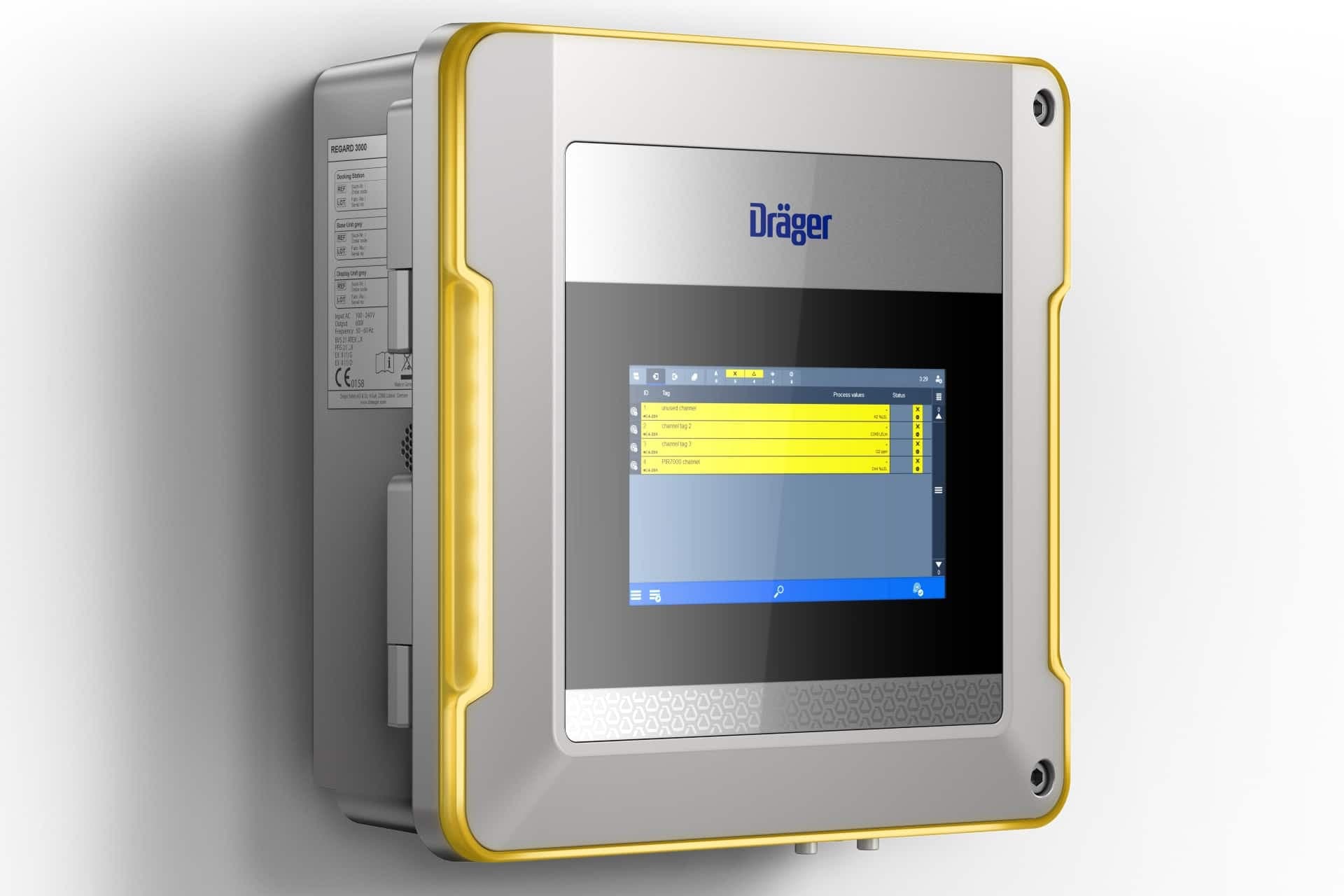

Dräger REGARD® 3000 in the event of a failure or fault
Dräger REGARD® 3000 in the event of a gas alarm

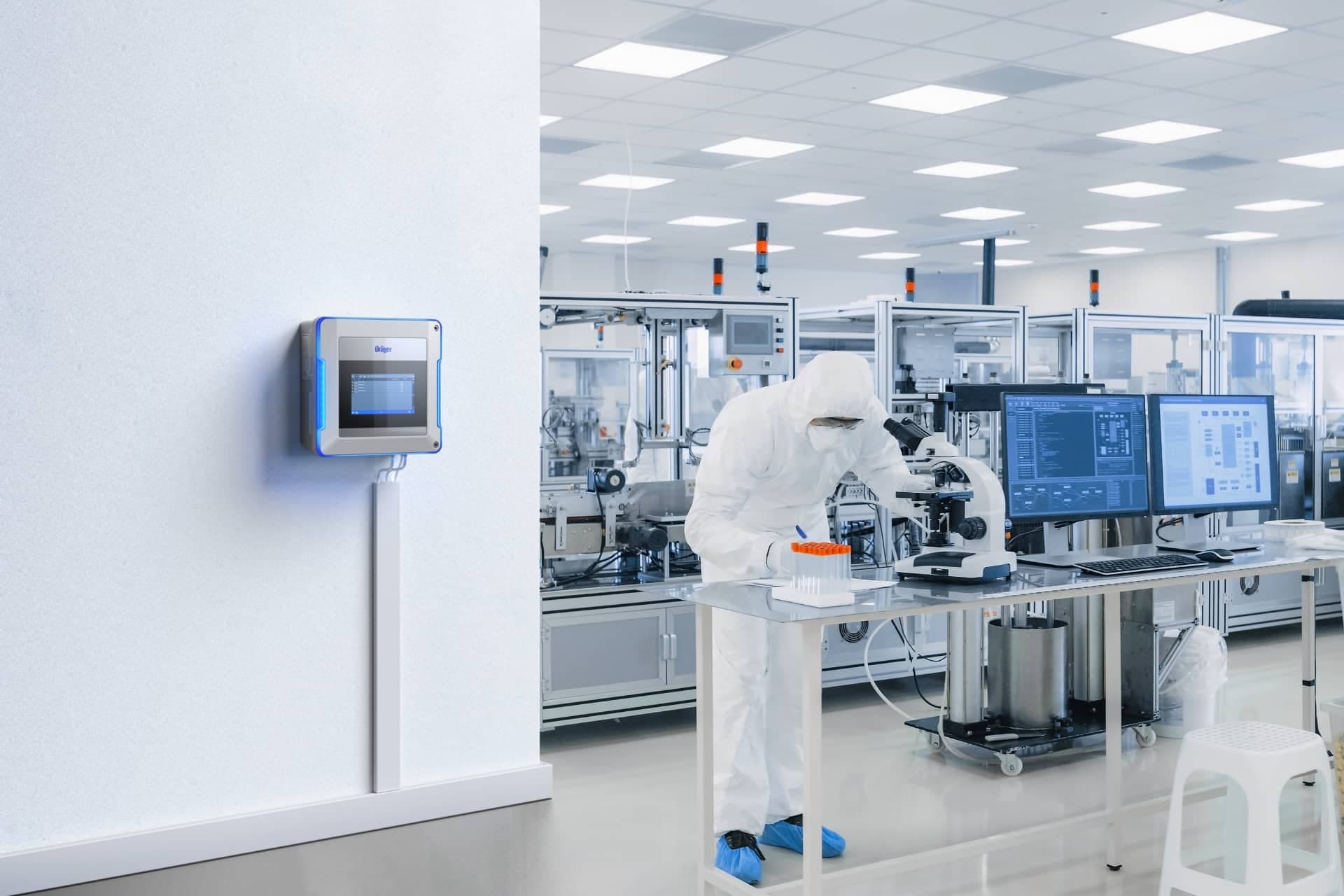

Dräger REGARD® 3000 in the lab

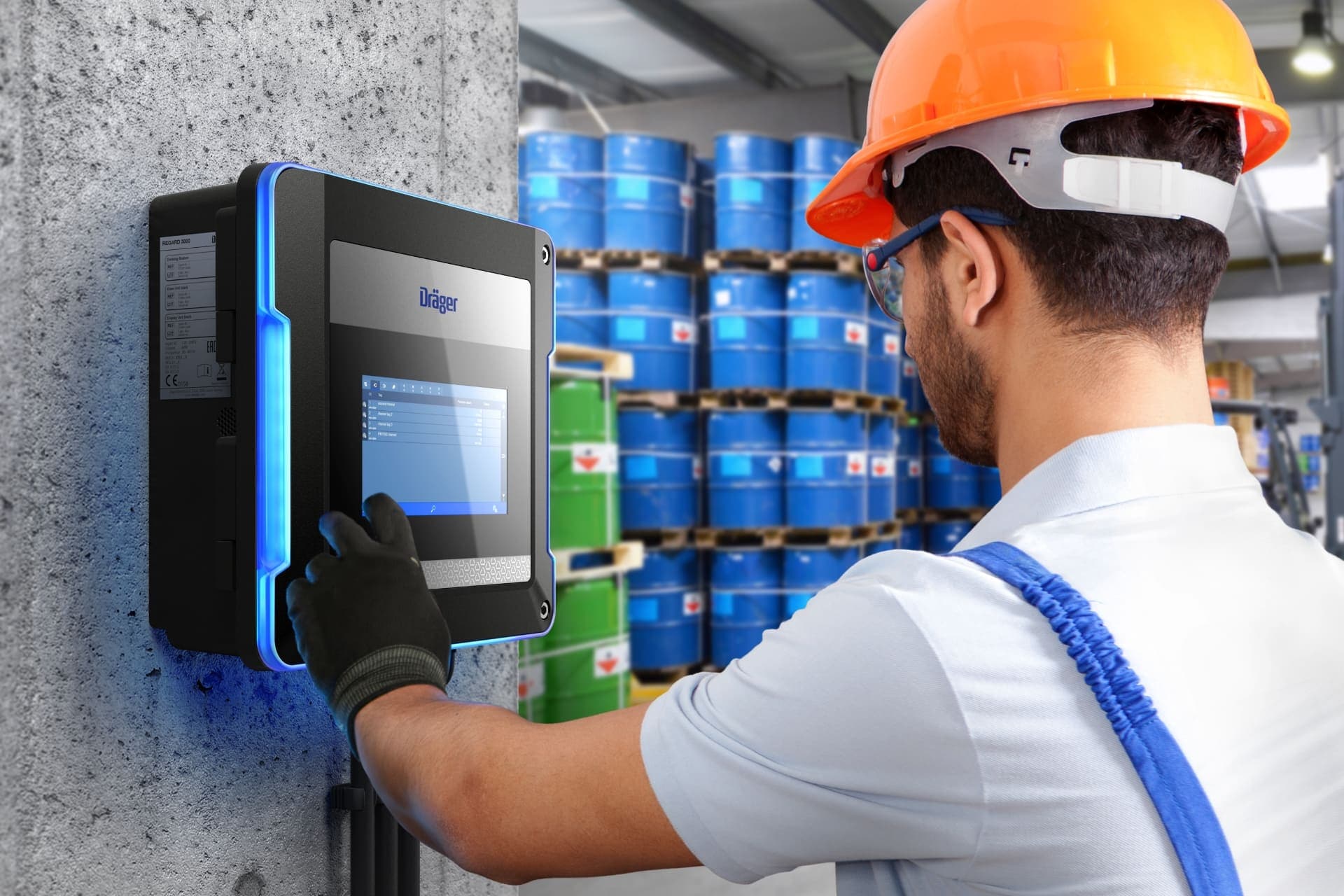

Dräger REGARD® 3000 in the hazmat warehouse

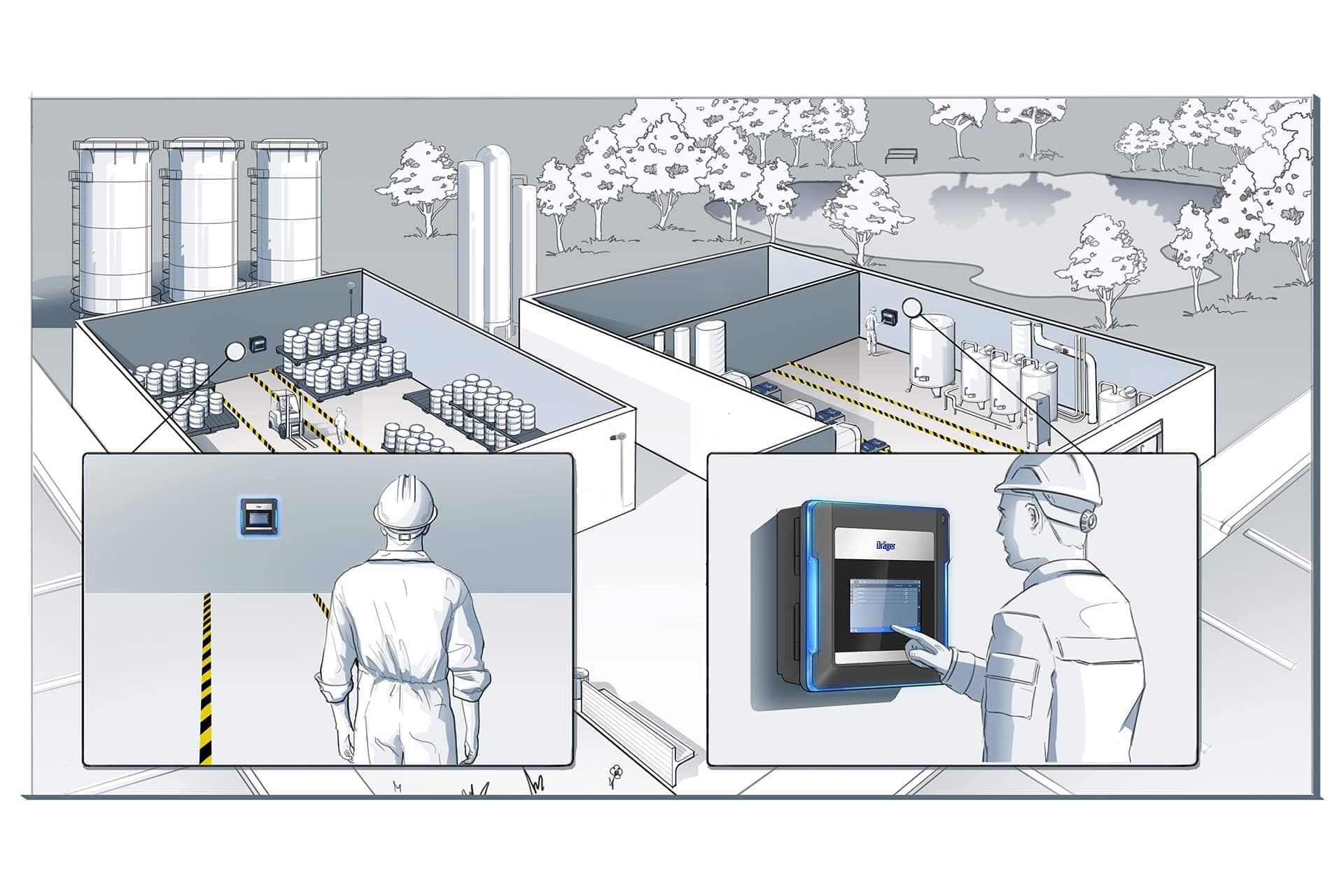

One thing is of highest importance wherever gases are monitored on a daily basis. When an alarm occurs, the responsible safety personnel and all other co-workers have to be informed immediately. They need to know about the possible threat from a gas leakage or other critical incidents. Not only in the control centre but also on site.

Summary

Product overview

Modular control system for various gas and vapour monitoringMulti-coloured status light signals system statusAllows combination of Input, Relay, and Gateway modules

Category

Fixed Gas Detection

This page is structured from official Draeger content and reorganized for local B2B navigation.

Product enquiry

Enquire about Dräger REGARD® 3000

Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.

Selected productDräger REGARD® 3000

Your enquiry is stored in the site database and appears in the admin CRM. Email delivery and bot notifications can be enabled from environment settings, including a webhook bot hosted on Fly.io.

Specifications

Technical groups extracted from the official Draeger detail page.

Specifications 1

Type
wall-mounted or rail-mounted
Channels
4
Digital communication
(outputsignal)
SIL
SIL 2c3 (IEC 61508-1-3)

Specifications 2

Power Supply
115 – 230 V AC
Temperature (operation)
-20°C - 55°C
Humidity
5 ... 90 % r.h., non-condensing
Pressure (hPa)
700 - 1300
Dimensions (H × W × D)
30x30.5x10 cm
Weight
8 Kg
Degree of protection (IP class)
IP65
