Dräger VarioGard 2320 IR

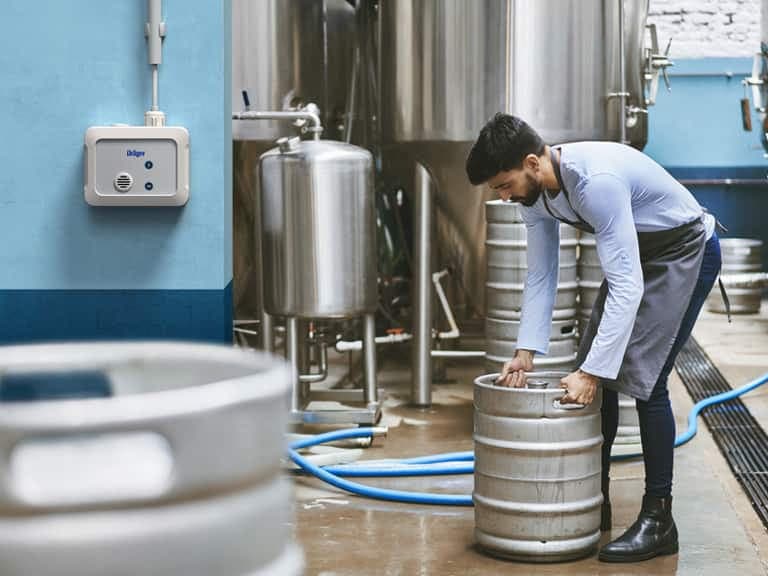

The Dräger VarioGard 2320 IR is a transmitter with a 4-20 mA output signal and integrated infrared sensor. It detects carbon dioxide in non Ex areas, such as breweries and wineries.
Summary
Product overview
Monitors possible gas leaks or workplace exposure limits of carbon dioxideFeatures a standardised 4-20-mA signal for easy integration into other systemsComes with a gas library for different applications
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger VarioGard 2320 IR
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Infrared

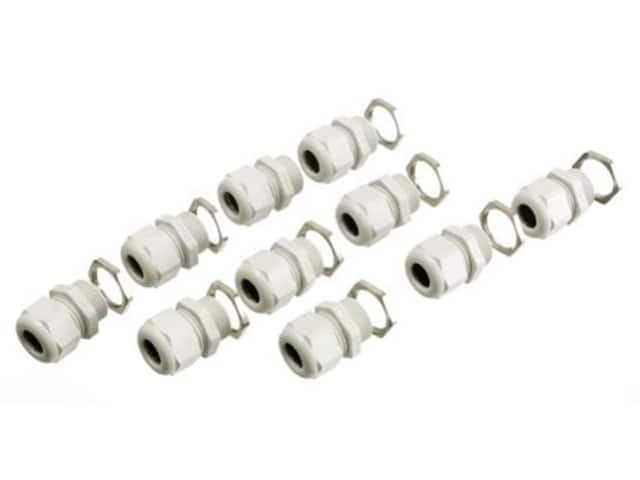

- Cable entry
- M20 x 1.5
Specifications 2
- Power Supply
- 16 to 32 VDC, 3-wire
- Temperature (operation)
- -20°C - 50°C
- Humidity
- 10 to 95% r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 11x12x6 cm
- Weight
- 400 g
- Housing Material
- Plastic ABS
- Degree of protection (IP class)
- IP65
