Safety / Fixed Gas Detection

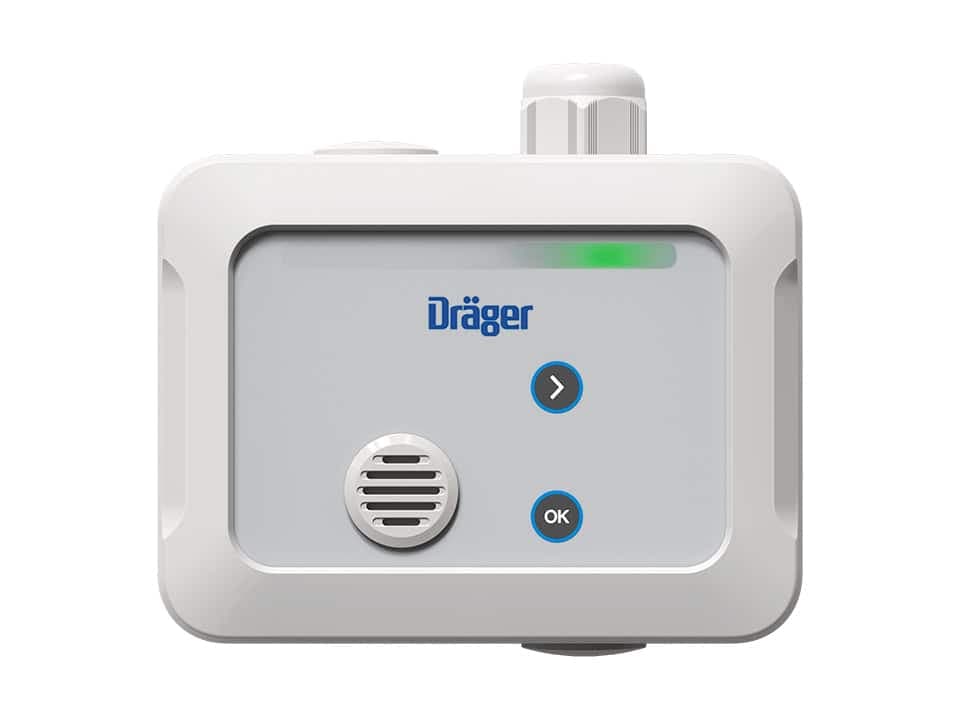

Dräger VarioGard 3000 EC Transmitter
The Dräger VarioGard 3000 EC is a digital transmitter with an integrated electrochemical sensor. It detects toxic gases such as CO, NO2, NO, NH3 and oxygen in non Ex areas such as underground garages, laboratories and in cold storage houses.
Summary
Product overview
Detects toxic gases such as CO, NO2, NO, NH3, and oxygenOffers high reliability with an electrochemical DrägerSensorEasy to install and operate, with minimal maintenance required
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger VarioGard 3000 EC Transmitter
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Electrochemical

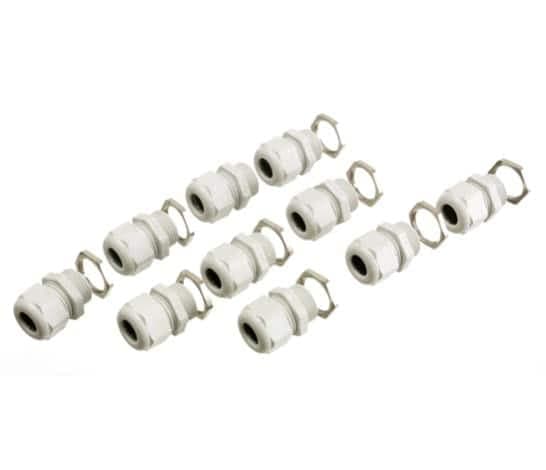

- Cable entry
- M20 x 1.5
Specifications 2
- Power Supply
- 16 to 30 V DC
- Temperature (operation)
- -20°C - 50°C
- Humidity
- 10 to 95% r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 11x12x6 cm
- Weight
- 400 g
- Housing Material
- Plastic ABS
- Degree of protection (IP class)
- IP65
Specifications 4
- Name
- More information
- Ammonia (anhydrous)
- More information
- Carbon monoxide
- More information
- Nitric oxide
- More information
- Nitrogen dioxide
- More information
- Oxygen
- More information
Specifications 5
- Product
- Order number
- DrägerSensor XXS CO VG
- 6812241
- DrägerSensor XXS NH3 VG
- 6812242
- DrägerSensor XXS NO VG
- 6812243
- DrägerSensor XXS NO2 LC VG
- 6800206
- DrägerSensor XXS O2 VG
- 6812245
