Dräger VarioGard 3200 CAT

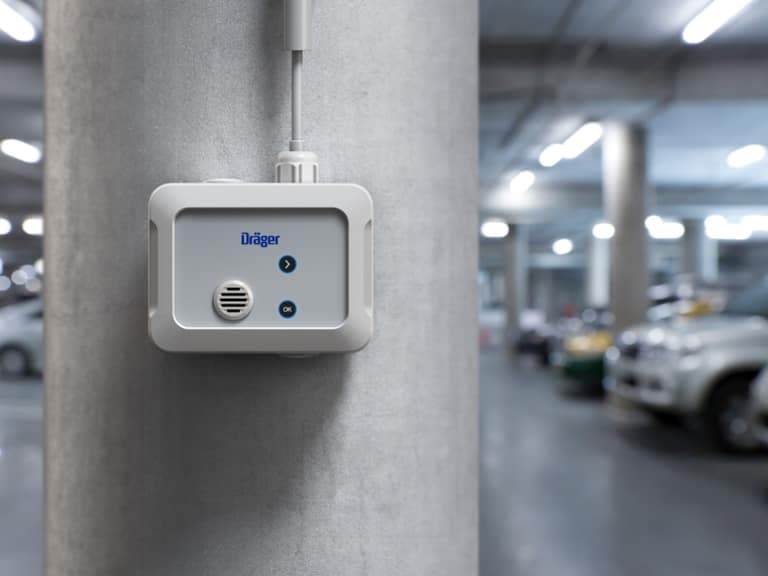

The Dräger VarioGard 3200 CAT is a digital transmitter with an integrated catalytic DrägerSensor. It detects flammable gases such as methane, LPG and hydrogen in non Ex areas, such as underground garages and laboratories.
Summary
Product overview
Detects flammable gases methane and LPG in the ambient airEquipped with a catalytic DrägerSensor for high reliabilityEasy to install and operate, with minimal maintenance required
Category
Fixed Gas Detection
This page is structured from official Draeger content and reorganized for local B2B navigation.
Product enquiry
Enquire about Dräger VarioGard 3200 CAT
Send your project, quantity or specification request directly from the product page. The lead will be stored in the site CRM and can also be routed to email and Telegram notifications.
Specifications
Technical groups extracted from the official Draeger detail page.
Specifications 1
- Type
- Transmitter
- Measuring Principle
- Catalytic Bead Sensor
- Cable entry
- M20 x 1.5
Specifications 2
- Power Supply
- 16 to 30 V DC, 3-wire
- Temperature (operation)
- -20°C - 50°C
- Humidity
- 10 to 95 % r.h., non-condensing
- Pressure (hPa)
- 700 - 1300
- Dimensions (H × W × D)
- 11x12x6 cm
- Weight
- 400 g
- Housing Material
- Plastic ABS
- Degree of protection (IP class)
- IP65
